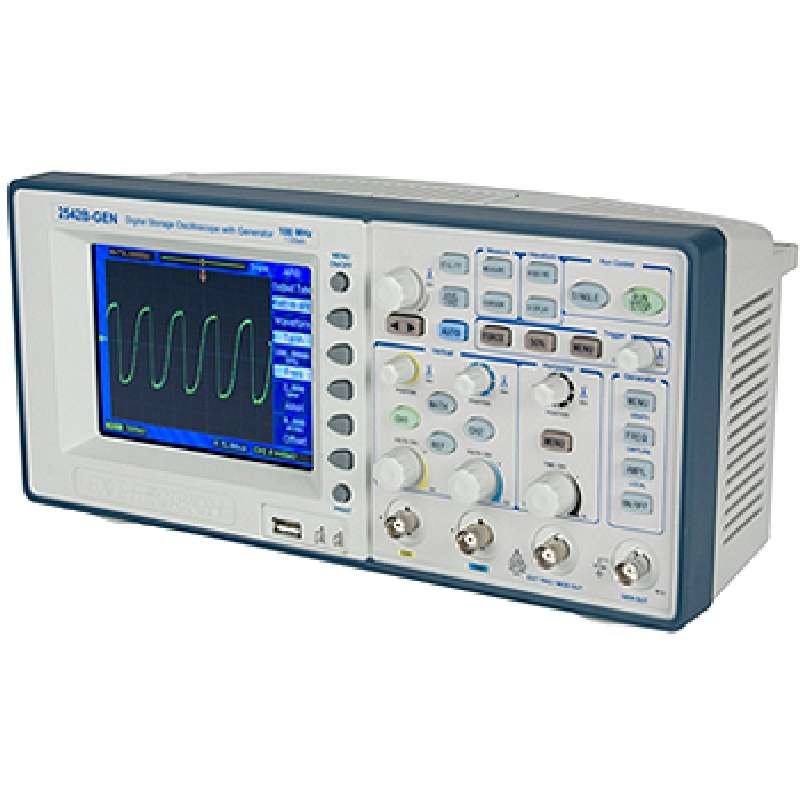

2542B-GEN
| Manufacturer | |
| Description | Benchtop Oscilloscopes Oscilloscope w/Gen 100 MHz, 1GSa/s OSCOPE 100MHZ 1GSA/S DGTL STORGE 2542B-GEN Digital Storage Oscilloscope with Color LCD Display , 100 MHz Bandwidth, LAN Connection, and Function/Arbitrary Waveform Generator |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant By Exemption | Part Status | 2542B-GEN |
| Safety Category | CAT I | ||
Electrical
| Accuracy | ±0.01% | Channels | 2 |
| Interface | LAN, RS232, USB | Memory Size | 16kpts |
| Display Type | LCD - Color | Input Impedance | 1M - 18pF |
| Maximum Payload | 50s/div | Rise Time (Typ) | 3.5ns |
| Voltage - Supply | 100 ~ 240VAC | Number of Channels | 2 |
| Sampling Frequency | 1 GSa/s | Sensitivity (mV/g) | 2mV/div |
| Voltage - Input (Min) | CAT I 400V | Sampling Rate (Per Second) | 1G |
Mechanical
| Width | 6.16in | Height | 4.84in |
| Length | 12.6in | Weight | 6 lbs |
| Bandwidth | 100MHz | Cable Type | North American Power Cord Included |
| Size / Dimension | 12.6 x 6.16 x 4.84in | Minimum Working Height | 2ns/div |
Product Info
| Type | Bench, Digital | Function | Record, Playback, Save, Trend |
| Includes | Cord, Manual, Probes, USB Cable | Probe Type | Passive 10:1 (2) |
| Manufacturer | BK Precision | Product Type | Digital Oscilloscope |
| Trigger Type | Edge|Pulse|Width | Equipment Type | Digital Oscilloscopes |
Environmental
| Operating Temperature | +104°F | ||
