1901
| Manufacturer | |

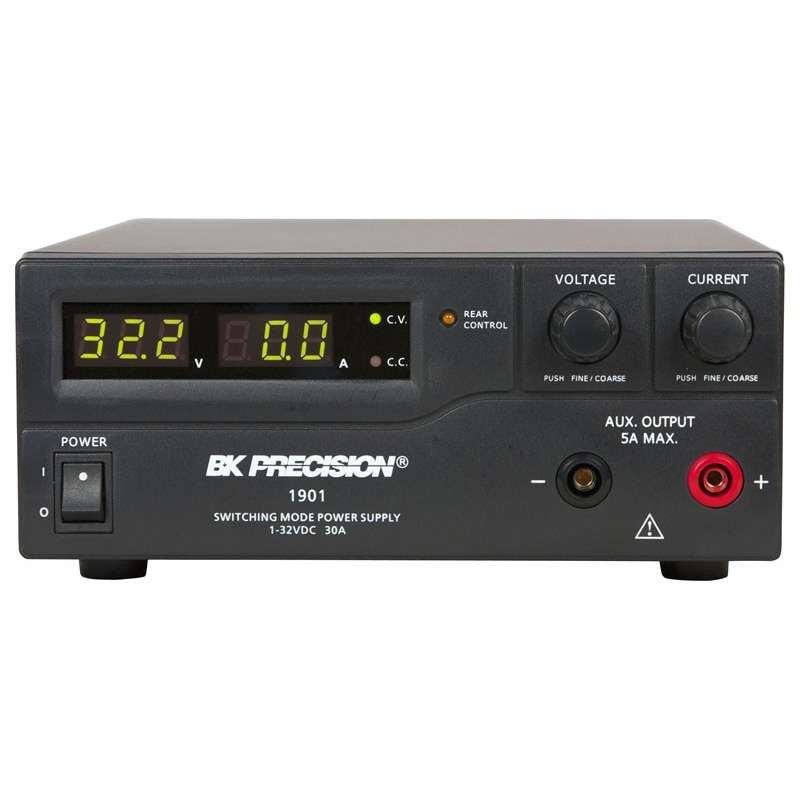

| Description | Bench Top Power Supplies Switch DC Pwr Supply 1-32V, 30A POWER SUPPLY 1-32V 30A SWITCH DC Power Supply SwitchingDCPowerSupply,1-32V,30A Model 1901 High Current Switching DC Power Supply, 1-30V, 30A |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | BK1901 | Part # Aliases | EXD |
| Product Category | Bench Top Power Supplies | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant By Exemption | Protection Features | Over Load Protection, Reverse Polarity Protection, Over Voltage Protection, Short Circuit Protection |
Electrical
| Ripple | 5mV rms | Display Type | LED |
| Voltage Rating | 120 VAC, 230 VAC | Current - Output | 0 ~ 30A |
| Voltage - Supply | 120VAC | Number of Outputs | 1 |
| Power Supply Type | Digital | Voltage - Input (Min) | 1 ~ 32VDC |
| Current Regulation - Line | 50mA | Current Regulation - Load | 150mA |
| Voltage - Supply, Battery | 100 to 120V ac | Voltage Regulation - Line | 20mV |
| Voltage Regulation - Load | 50mV | Current - Output / Channel | 0 A to 30 A |
| Accuracy - Voltmeter; Ammeter | 0.2% + 3 counts | ||
Mechanical
| Width | 3.5in | Height | 10.8in |
| Length | 7.9in | Weight | 7 lbs (3.2kg) |
| Cable Type | North American Power Cord Included | Mounting Type | Surface Mount |
| Size / Dimension | 10.800" L x 7.900" W x 3.500" H (274.32mm x 200.66mm x 88.90mm) | ||
Product Info
| Type | Bench (AC to DC) | Series | 1900 |

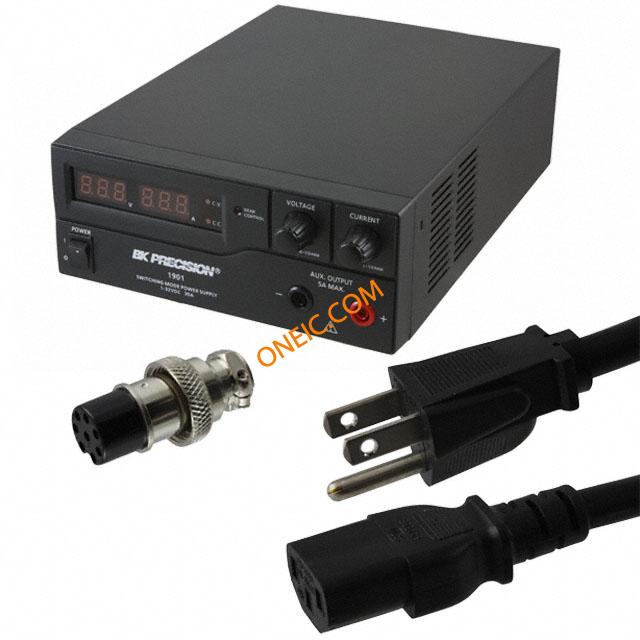

| Features | Adjustable or Fixed Selection Switch | Includes | Power Cord, Instruction Manual, Remote Control Connector |
| Manufacturer | BK Precision | Product Type | Dc Power Supply |
| Number of Characters | 3 (2) | ||
Environmental
| Operating Temperature | +32°F | ||
