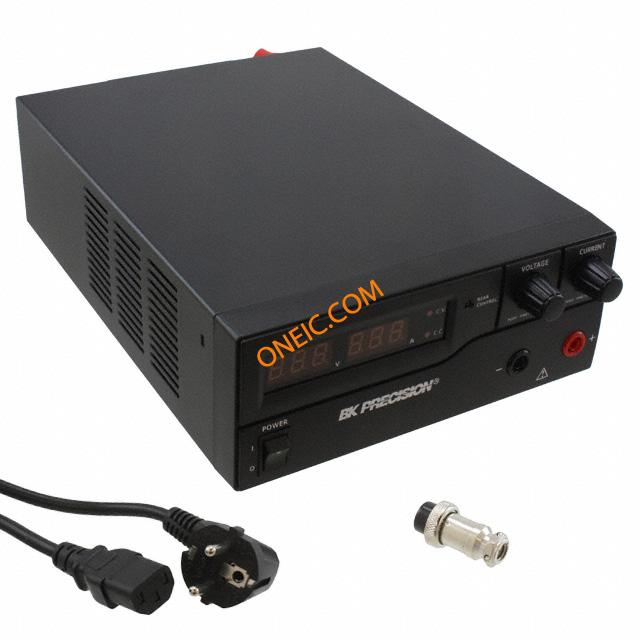

1901-220V
| Manufacturer | |
| Description | PWR SPLY 1-32V 30A SW DC 220V-IN Bench Top Power Supplies Switch DC Pwr Supply 1-32V, 30A, 220V EUR |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant By Exemption | ||
Electrical
| Ripple | 5mV rms | Display Type | LED |
| Current - Output | 0 ~ 30A | Voltage - Supply | 230VAC |
| Number of Outputs | 1 | Voltage - Input (Min) | 1 ~ 32VDC |
| Current Regulation - Line | 50mA | Current Regulation - Load | 150mA |
| Voltage Regulation - Line | 20mV | Voltage Regulation - Load | 50mV |
| Accuracy - Voltmeter; Ammeter | 0.2% + 3 counts | ||
Mechanical
| Weight | 7 lbs (3.2kg) | Size / Dimension | 10.800" L x 7.900" W x 3.500" H (274.32mm x 200.66mm x 88.90mm) |
Product Info
| Type | Bench (AC to DC) | Features | Adjustable or Fixed Selection Switch |
| Number of Characters | 3 (2) | ||
