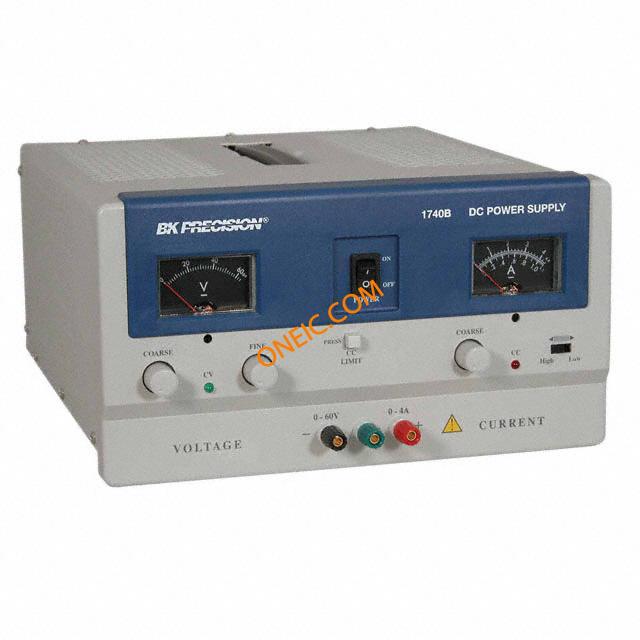

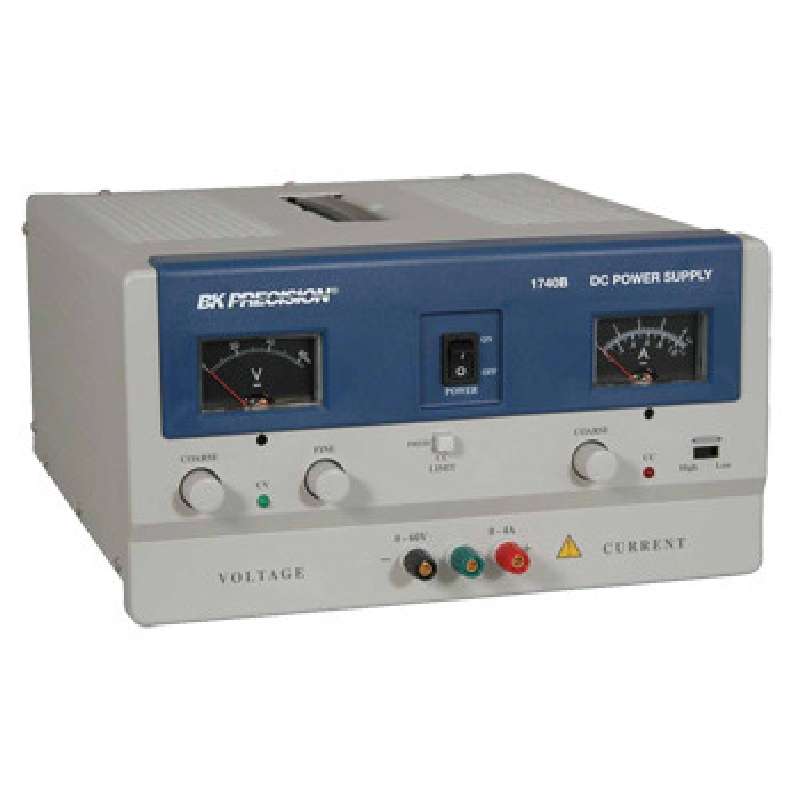

1740B
| Manufacturer | |
| Description | Bench Top Power Supplies 0-60VDC 4A ANALOG POWER SUPPLY 60V 4A ANALOG AC/DC Power Supply Single-OUT 0V to 60V 4A AnalogDCPowerSupply(0-60V,0-4A) DC Analog Power Supply 0-60 VDC 0-4 A |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | BK1740B | Part # Aliases | EXD |
| Product Category | Bench Top Power Supplies | Standard Package | 2 |
Compliance
| RoHS | RoHS Compliant By Exemption | Protection Features | Current Limiting Protection, Reverse Polarity Protection, Over Voltage Protection, Short Circuit Protection |
Electrical
| Ripple | 1mV rms | Display Type | Analog (2) |
| Voltage Rating | 120 VAC, 220 VAC, 230 VAC, 240 VAC Selectable | Current - Output | 0 ~ 4A |
| Voltage - Supply | 120VAC, 220VAC | Number of Outputs | 1 |
| Power Supply Type | Analog | Voltage - Input (Min) | 0 ~ 60VDC |
| Power - Average Forward | 450W | Current Regulation - Line | 0.4% + 5mA |
| Current Regulation - Load | 0.4% + 5mA | Voltage - Supply, Battery | 120/220V ac |
| Voltage Regulation - Line | 0.2% + 2mV | Voltage Regulation - Load | 0.04% + 2mV |
| Current - Output / Channel | 4 A | Accuracy - Voltmeter; Ammeter | 0.025 |
Mechanical
| Width | 10.5in | Height | 15in |
| Length | 5.7in | Weight | 23 lbs (10.4kg) |
| Cable Type | Attached Power Cord | Mounting Type | Surface Mount |
| Size / Dimension | 15.000" L x 10.500" W x 5.700" H (381.00mm x 266.70mm x 144.78mm) | ||
Product Info
| Type | Bench (AC to DC) | Series | 1700 |
| Features | Constant Current and Constant Voltage Indicators | Includes | Instruction Manual, Spare Fuse, Power Cord |
| Manufacturer | BK Precision | Product Type | Dc Power Supply |
Environmental
| Operating Temperature | +32°F | ||
