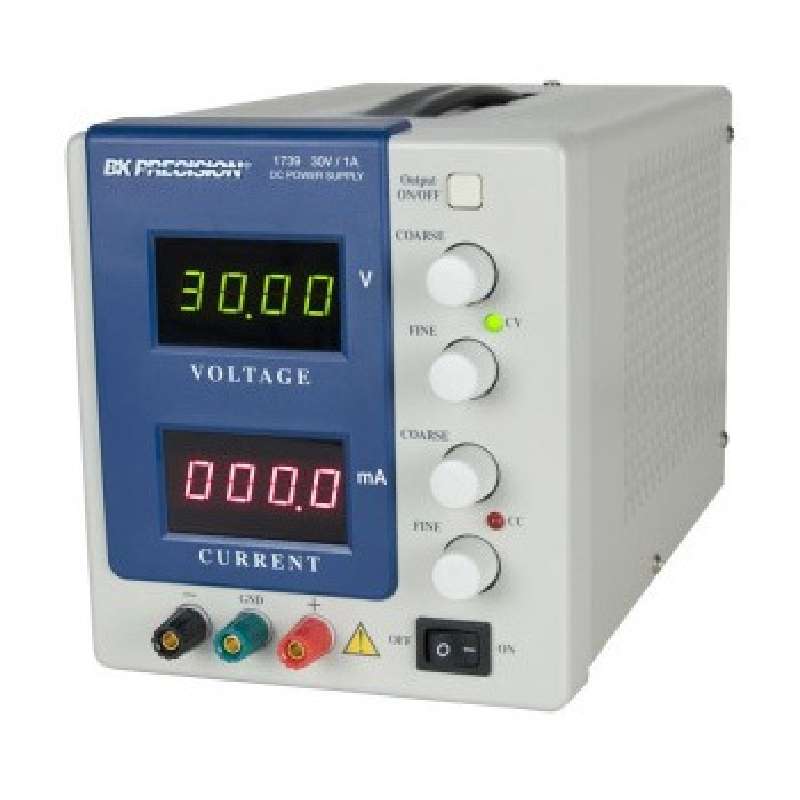

1739
| Manufacturer | |
| Description | PWR SPLY HIGH RES 30V 1A Bench Top Power Supplies DC Power Supply 30V/1A Low Current LowCurrentHighResolutionDCPowerSupply,30V,1A Model 1739 Low Current High Resolution DC Power Supply, 30V, 1A |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | BK1739 | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Protection Features | Current Limiting Protection, Reverse Polarity Protection |
Electrical
| Ripple | 1mV rms | Display Type | LED |
| Line Regulation | 0.1 % + 3 mV|0.4 % + 0.3 mA | Load Regulation | 0.04 % + 1 mV|0.4 % + 0.1 mA |
| Current - Output | 0 ~ 999.9mA | Voltage - Supply | 110VAC, 220VAC |
| Number of Outputs | 1 | Power Supply Type | Digital |
| Current Rating (Max) | 0 ~ 999.9mA | Voltage - Input (Min) | 0 ~ 30V |
| Current Regulation - Line | 0.4% + 0.3mA | Current Regulation - Load | 0.4% + 0.1mA |
| Voltage - Supply, Battery | 110/220V ac | Voltage Regulation - Line | 0.1% + 3mV |
| Voltage Regulation - Load | 0.04% + 1mV | Current - Output / Channel | 0 mA to 1 A |
| Accuracy - Voltmeter; Ammeter | 0.5% + 2 digits | ||
Mechanical
| Size | 12.500" L x 5.500" W x 6.200" H (317.50mm x 139.70mm x 157.48mm) | Width | 6.2in |
| Height | 12.5in | Length | 5.5in |
| Weight | 9 lbs (4.1kg) | Cable Type | Detachable Power Cord Included |
| Mounting Type | Surface Mount | Size / Dimension | 12.500" L x 5.500" W x 6.200" H (317.50mm x 139.70mm x 157.48mm) |
Product Info
| Type | Bench (AC to DC) | Series | 1739 |

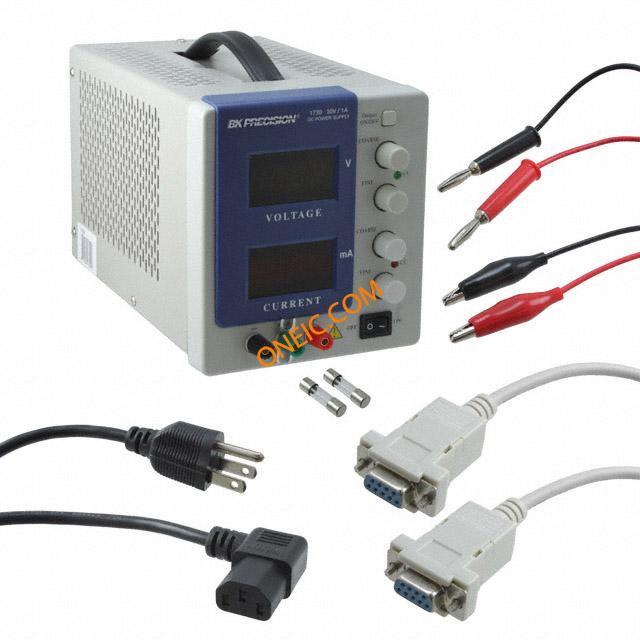

| Features | Constant Current and Constant Voltage Indicators | Includes | Instruction Manual, Power Cord, RS232 Cable |
| Main Purpose | Constant Current and Constant Voltage Indicators | Manufacturer | BK Precision |
| Product Type | Dc Power Supply | Number of Characters | 4 (2) |
Environmental
| Operating Temperature | +32°F | ||
