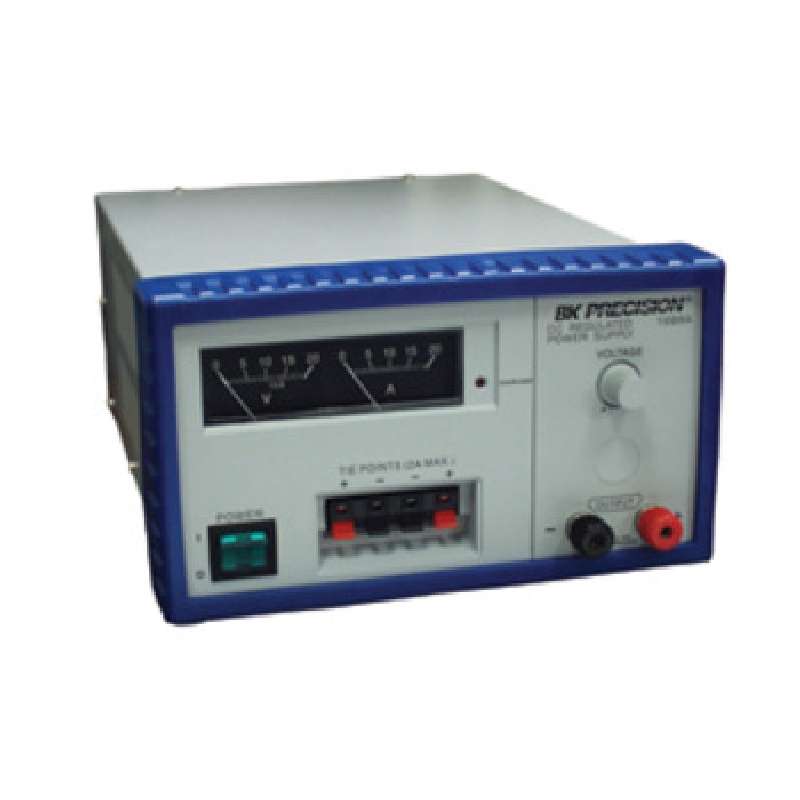

1686A
| Manufacturer | |
| Description | Bench Top Power Supplies HI-CUR 3-14 VDC 12A POWER SUPPLY 3-14VDC 12A AC/DC Power Supply Single-OUT 3V to 14V 12A PowerSupply;3to14VDC;580W;ltlt===0.8%@108to132VAC;0to40degC High Current Output Analog Power Supply 3-14VDC 0-12A |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | BK1686A | Part # Aliases | EXD |
| Product Category | Bench Top Power Supplies | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant By Exemption | Protection Features | Over Voltage Protection, Foldback Current Limiting, Reverse Polarity Protection |
Electrical
| Ripple | 10mV rms | Power - Max | 580W |
| Display Type | Analog | Voltage Rating | 115 VAC, 230 VAC Selectable |
| Current - Output | 2.5A @ 3VDC, 12A @ 13.8VDC | Voltage - Supply | 108 ~ 132VAC |
| Number of Outputs | 1 | Power Supply Type | Analog |
| Voltage - Input (Min) | 3 ~ 14VDC | Power - Average Forward | 400W |
| Voltage - Supply, Battery | 115/230V ac | Voltage Regulation - Line | 0.008 |
| Current - Output / Channel | 12 A | Accuracy - Voltmeter; Ammeter | 0.07 |
Mechanical
| Width | 8.5in | Height | 11.5in |
| Length | 4.9in | Weight | 13 lbs (5.9kg) |
| Cable Type | Attached Power Cord | Mounting Type | Surface Mount |
| Size / Dimension | 11.500" L x 8.500" W x 4.900" H (292.10mm x 215.90mm x 124.46mm) | ||
Product Info
| Type | Bench (AC to DC) | Series | 1600 |
| Includes | Instruction Manual, Spare Fuse, Line Cord | Manufacturer | BK Precision |
| Product Type | Dc Power Supply | ||
Environmental
| Operating Temperature | 0to40°C | ||
