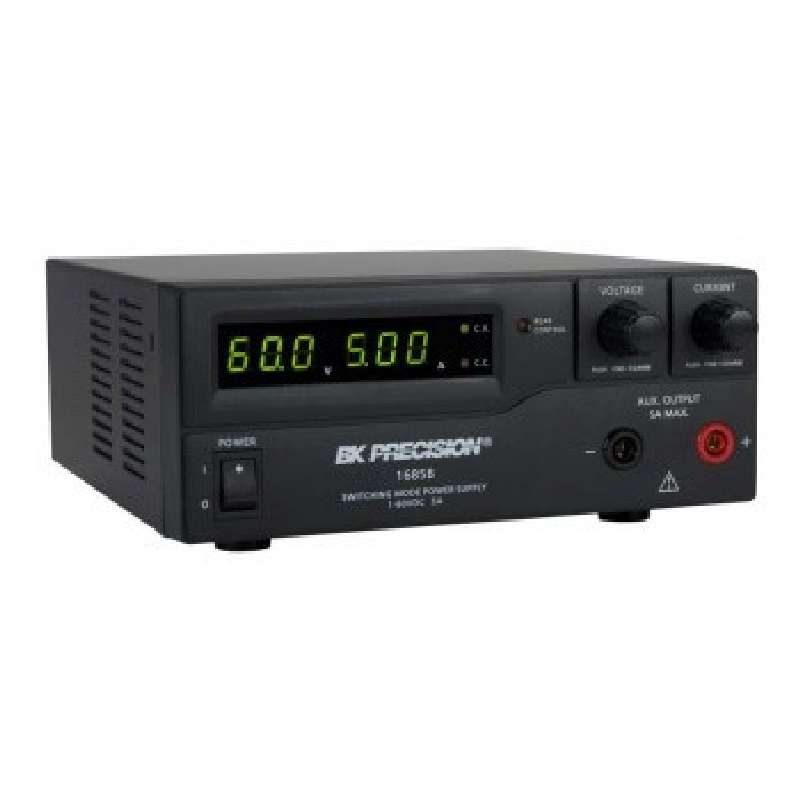

1685B
| Manufacturer | |
| Description | POWER SUPPLY DC SW 1-60V 5A Bench Top Power Supplies 1-60V, 5A Switching DC Power Supply 1-60V,5ASwitchingDCPowerSupply Model 1685B Digital Switching Mode DC Power Supply 1-60V, 0-5A with USB Interface |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | BK1685B | Standard Package | 2 |
Compliance
| RoHS | RoHS Compliant | Protection Features | Overload Protection, Over Voltage Protection, Over Temperature Protection |
Electrical
| Output | 60VDC@5A | Ripple | 50mV p-p, 5mV rms |
| Operation | Switching | Display Type | LED |
| Power - Output | 300W | Voltage Rating | 100 VAC to 240 VAC |
| Current - Output | 0 ~ 5A | Voltage - Supply | 100 ~ 240VAC |
| Number of Outputs | 1 | Power Supply Type | Digital |
| Voltage - Input (Min) | 1 ~ 60VDC | Current Regulation - Line | 50mA |
| Current Regulation - Load | 100mA | Voltage - Supply, Battery | 100 to 240V ac |
| Voltage Regulation - Line | 20mV | Voltage Regulation - Load | 50mV |
| Current - Output / Channel | 0 A to 5 A | Accuracy - Voltmeter; Ammeter | 0.2% + 3 counts |
Mechanical
| Width | 3.5in | Height | 8.2in |
| Length | 7.9in | Weight | 5.2 lbs (2.4kg) |
| Mounting Type | Surface Mount | Mounting Style | Panel |
| Primary Material | AC-DC | Size / Dimension | 8.189" L x 7.874" W x 3.543" H (208.00mm x 200.00mm x 90.00mm) |
Product Info
| Type | Bench (AC to DC) | Series | 1600 |

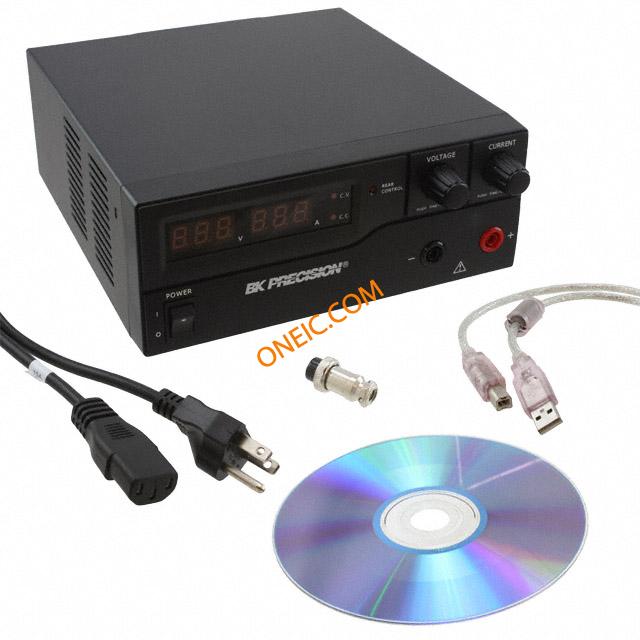

| Features | Programmable, Remote Control, Software, Switching, USB Interface | Includes | Power Cord, Instruction Manual, Application Software CD, USB Cable, Remote Control Connector |
| Manufacturer | 168XB | Product Type | Dc Power Supply |
| Configuration | Enclosed | Number of Characters | 3 (2) |
Environmental
| Operating Temperature | +32°F | ||
