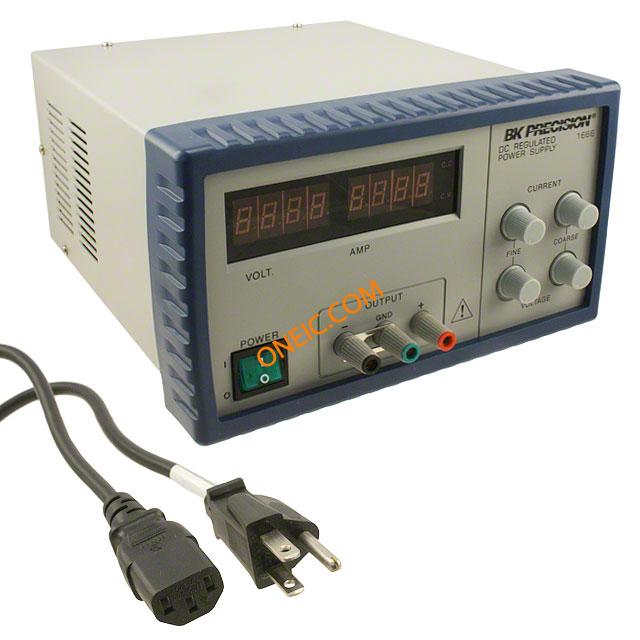

1666
| Manufacturer | |
| Description | Bench Top Power Supplies 1-40V 5A Switching POWER SUPPLY DC SWITCHER 1-40V PowerSupply;DCRegulatedTypeofPowerSupply;0to35VDC;0to5A;20mV Model 1666 Bench Switching DC Power Supply, 1-40V, 0-5A |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Bench Top Power Supplies | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant By Exemption | Protection Features | Over Voltage Protection |
Electrical
| Noise | 20mV | Ripple | 20mV p-p |
| Display Type | LED | Voltage Rating | 100 VAC to 240 VAC |
| Line Regulation | 50mV | Load Regulation | 0.5 %+200 mV |
| Current - Output | 0 ~ 5A | Voltage - Supply | 90 ~ 265VAC |
| Number of Outputs | 1 | Power Supply Type | Digital |
| Voltage - Input (Min) | 1 ~ 40VDC | Voltage - Supply, Battery | 100 to 240V ac |
| Voltage Regulation - Line | 50mV | Voltage Regulation - Load | 0.5% + 200mV |
| Current - Output / Channel | 5 A | Accuracy - Voltmeter; Ammeter | 1% + 2 counts; 0.5% + 2 counts |
Mechanical
| Width | 4.5in | Height | 11in |
| Length | 8in | Weight | 6.6 lbs (3kg) |
| Cable Type | North American Power Cord Included | Mounting Type | Surface Mount |
| Size / Dimension | 10.800" L x 8.000" W x 4.500" H (274.32mm x 203.20mm x 114.30mm) | ||
Product Info
| Type | Bench (AC to DC) | Series | 1600 |
| Features | Switching | Includes | User Manual, Power Cord |
| Manufacturer | BK Precision | Product Type | Dc Power Supply |
| Number of Characters | 3 (2) | ||
