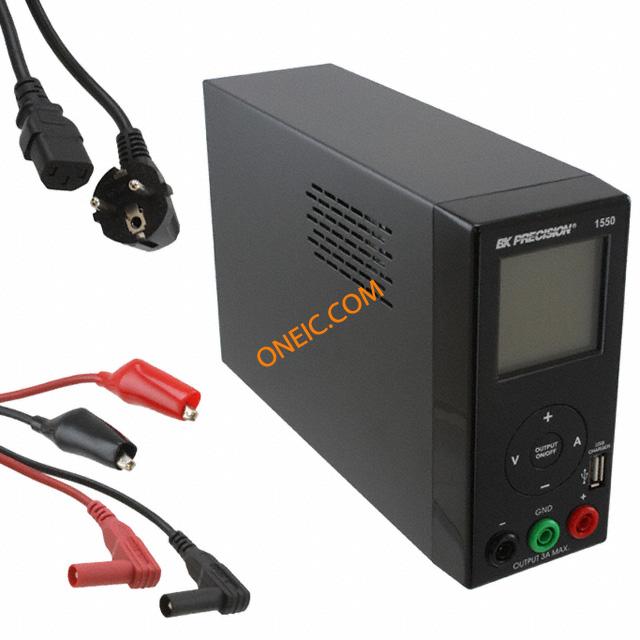

1550-220V
| Manufacturer | |
| Description | PWR SPLY 36V 0-3A W/USB 220V-IN |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Ripple | ±5mV rms | Display Type | LCD |
| Power (Watts) | 108W | Current - Output | 0 ~ 3A |
| Voltage - Supply | 230VAC | Number of Outputs | 1 |
| Voltage - Input (Min) | 1 ~ 36VDC | Current Regulation - Line | ±20mA |
| Current Regulation - Load | ±20mA | Voltage Regulation - Line | ±20mV |
| Voltage Regulation - Load | ±50mV | Accuracy - Voltmeter; Ammeter | 1% + 5 digits |
Mechanical
| Weight | 4.4 lbs (2kg) | Size / Dimension | 9.800" L x 2.800" W x 6.000" H (248.92mm x 71.12mm x 152.40mm) |
Product Info
| Type | Bench (AC to DC) | Features | USB Charge Port |
| Number of Characters | 3 (2) | ||
