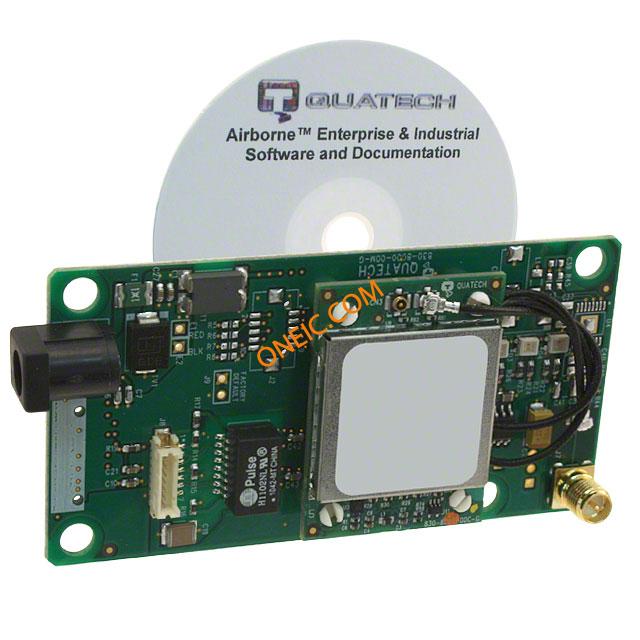

ABDG-BR-DP553
| Manufacturer | |
| Description | WiFi / 802.11 Modules WIRELESS ETH BRIDGE ETH BRIDGE BOARD ETHERNET TO 802.11 WLAN BRIDGE |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | Security Features | WEP, WPA, WPA2 |
Electrical
| Data Rate | 11 Mbps, 54 Mbps | Frequency | 2.4GHz ~ 2.4835GHz |
| Interface | Ethernet | Modulation | DSSS, OFDM |
| Power - Max | 14 dBm | Sensitivity | -86dBm |
| Data Interface | Connector, RJ-45 | Data Rate (Max) | 54Mbps |
| Current - Supply | 530 mA | Voltage - Supply | 5 V |
| Current - Receiving | 530mA | Current - Transmitting | 500mA |
| Current - Supply (Main IC) | 500 mA | Frequency Bands (Low / High) | 2.4 GHz |
Mechanical
| Packaging | Bulk | Size / Dimension | 89.7 mm x 46.3 mm x 14.5 mm |
| Antenna Connector | RPSMA | ||
Product Info
| Protocol | 802.11 b/g | Applications | General Purpose |
| Modulation or Protocol | 802.11 b/g | ||
Environmental
| Operating Temperature | + 85 C | ||
