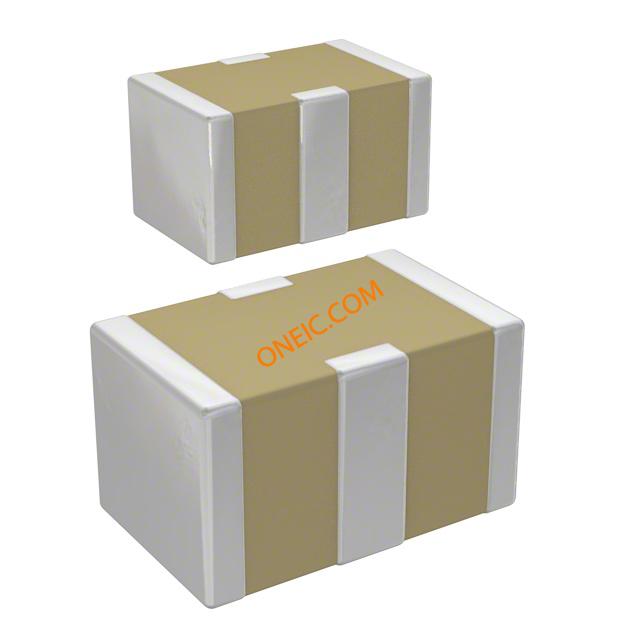

W2H11A2208AT1A
| Manufacturer | |
| Description | Feed Through Capacitors 100volt 22pF C0G CAP FEEDTHRU 22PF 100V NP0 0805 AVX 22pF -20 to +50% 100V dc C0G Dielectric SMD Ceramic Multilayer Capacitor, 0805 Package CAPACITOR, FEEDTHRU, 22PF, 100V FEEDTHRU0805100V22PF AVX W2H 系列 22pF -20 → 50% C0G电介质 100 V 直流 SMD 多层陶瓷电容器 (MLCC) , 0805封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | High Current | Other Names | 478-5478-2 |
| Product Category | Feed Through Capacitors | Standard Package | 4,000 |
| Factory Pack Quantity | 4000 | ||
Compliance
| RoHS | In Transition | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85322300 | ||
Electrical
| Current | 500mA | Voltage | 100V |
| Tolerance | - 20 %, + 50 % | Resistance | :150mohm |
| Capacitance | 22 pF | Range deg/s | :AVX - W2H Series |
| Voltage Rating | 100 V | Frequency Range | 5 GHz |
| Current - Output | :500mA | Capacitance - Input | :0805 [2012 Metric] |
| Capacitance @ Vr, F | :C0G / NP0 | DC Resistance (DCR) | 150 mOhm |
| Resistance Tolerance | -20% | Insulation Resistance | 1 Ohms |

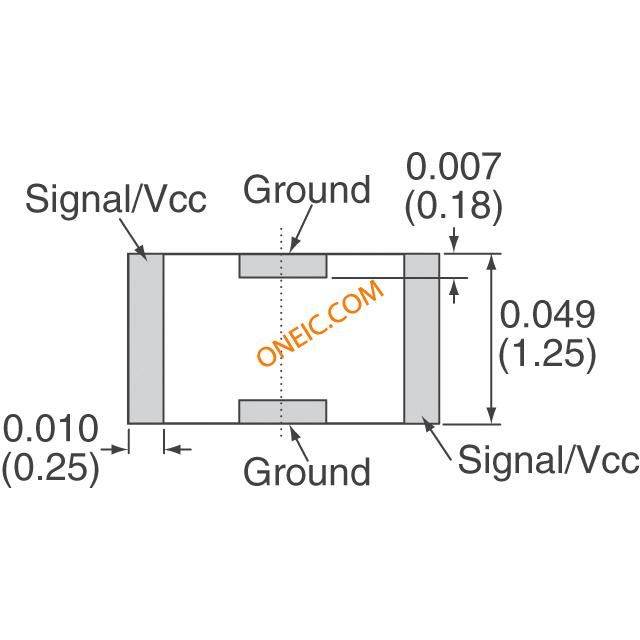

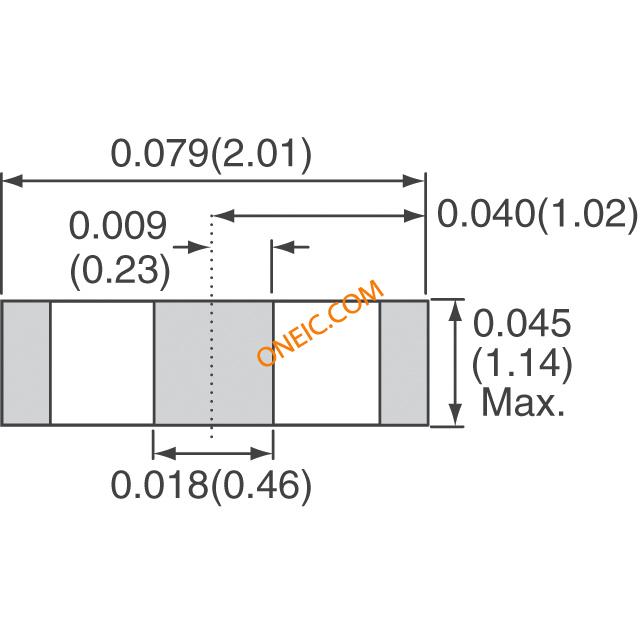

Mechanical
| Depth | 1.25mm | Width | 0.049 in |
| Height | 1.14mm | Length | 2.01mm |
| Weight | 0.0001 | Packaging | Reel |
| Height (Max) | 0.045" (1.14mm) | Mounting Type | Surface Mount |
| Terminal Type | :Surface Mount (SMD, SMT) | Number of Pins | :2 |
| Package / Case | 0805 (2012 metric) | Material Finish | :MSL 1 - Unlimited |
| Size / Dimension | 0.049 in W x 0.079 in L x 0.045 in H | Termination Style | SMD/SMT |
| Dielectric Material | C0G | ||
Product Info
| Type | High Current Feedthru Capacitor | Series | W2H |
Environmental
| Operating Temperature | - 55 C to + 125 C | Temperature Coefficient | C0G (NP0) |
