VCAS120618D400DP
| Manufacturer | |
| Description | Var MLV 13VAC/18VDC 150A 25.5V 1206 SMD T/R Varistors 1206 18 VDC 0.4J 42v VC 1206 DC=18V CL=42V 0,4J VARISTOR 150A 1206 VARISTOR, AUTO, 1206, 18V VARISTOR; 0.4J 18VDC 42V |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 1000 | Product | MLV |
| Tradename | TransGuard | Unit Pack | 1000 |
| Other Names | 478-6498-2 | Product Category | Varistors |
| Standard Package | Tape & Reel | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 85334090 | Automotive | AEC-Q(200) |
Electrical
| Tolerance | 10 % | Capacitance | 900 pF |
| Power - Rated | 0.008 W | Voltage Rating | 18 V |
| Current - Surge | 150 A | Maximum AC Volts | 13VAC |
| Maximum DC Volts | 18VDC | Voltage - Supply | 13V |
| Current - Leakage | 10 μA | Input Capacitance | 900 pF |
| Voltage - Working | 18/13 VDC/VAC | Voltage - Clamping | 42 V |
| Current Rating - AC | 150 A | Voltage - Breakdown | 25.5 V |
| Voltage - Breakover | :25.5V | Current Rating (Max) | 150A |
| Voltage - Input (Min) | 13 V | Varistor Voltage (Max) | 25.5 V |
| Varistor Voltage (Typ) | :Multilayer Varistor (MLV) | Voltage - Supply (Min) | :18V |
| DC Voltage - Input (Max) | 18V | Current - Peak Pulse (8/20us) | 1 A |
| Current - Reverse Leakage @ Vr | 10 μA | Impulse Discharge Current (8/20us) | :400mJ |
Mechanical
| Width | 1.6 mm | Weight | 0.0006 |
| Packaging | Reel | Size - Body | 1206 |
| Termination | Solder | Mounting Type | SMD/SMT |
| Package / Case | 1206 (3216 metric) | Package Cooled | 1206 |
| Locking Feature | Voltage | Primary Material | Varistors |

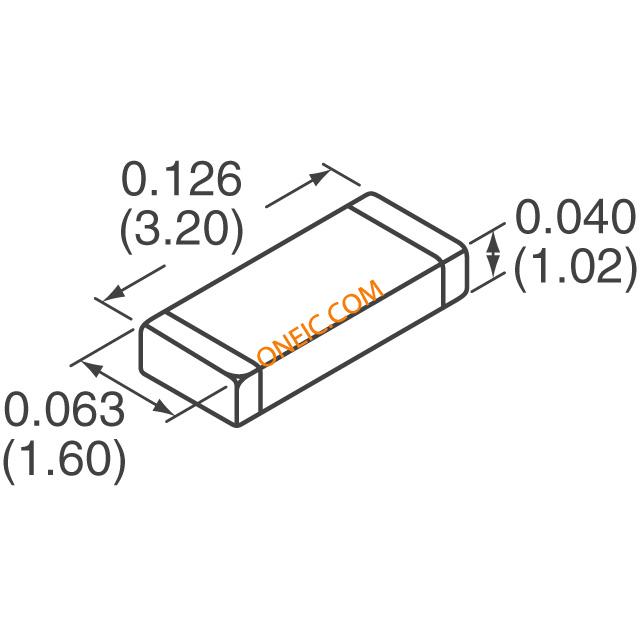

| Size / Dimension | 1.6 mm W x 3.2 mm L x 1.02 mm H | Termination Style | SMD/SMT |
Product Info
| Type | TVS | Energy | 0.4J |
| Series | VCAS | Matchcode | VC13V1206IMAX150A |
| Manufacturer | TransGuard Automotive Series | Configuration | Bidirectional |
| Standard Leadtime | 18 weeks | Number of Circuits | 1 |
| For Use With/Related Products | Commercial Vehicles | ||
Environmental
| Surge Rating (Watts) | 0.4 J | ||
