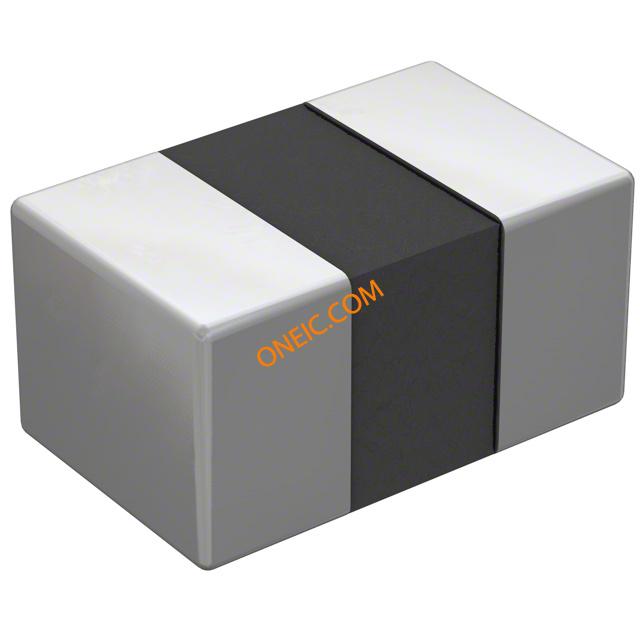

VCAS080530C650DP
| Manufacturer | |
| Description | Varistors 0805 30VDC .3J 67v VARISTOR 30A 0805 VARISTOR, 67V, 21VAC, 30VDC, 0805 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | MLV | Tradename | TransGuard |
| Other Names | 478-6505-2 | Product Category | Varistors |
| Standard Package | 1,000 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| Tariff No | 85334090 | ||
Electrical
| Tolerance | 10 % | Capacitance | 250 pF |
| Voltage Rating | 30 V | Current - Surge | 30 A |
| Maximum AC Volts | 21VAC | Maximum DC Volts | 30VDC |
| Voltage - Clamping | 67 V | Voltage - Breakover | :41V |
| Varistor Voltage (Max) | 36.9V | Varistor Voltage (Typ) | :Multilayer Varistor (MLV) |
| Voltage - Supply (Min) | :30V | Current - Peak Pulse (8/20us) | :30A |
| Impulse Discharge Current (8/20us) | :300mJ | ||
Mechanical
| Width | 1.25 mm | Weight | 0.0006 |
| Packaging | Reel | Mounting Type | SMD/SMT |

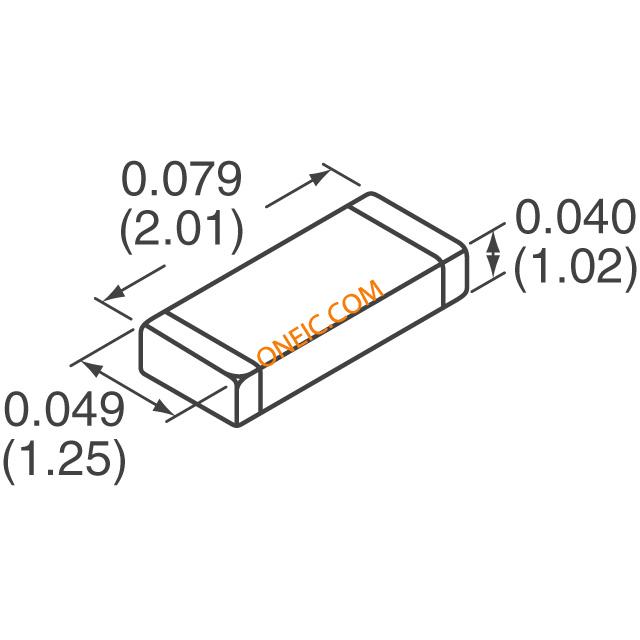

| Package / Case | 0805 (2012 metric) | Size / Dimension | 1.25 mm W x 2.01 mm L x 1.02 mm H |
| Termination Style | SMD/SMT | ||
Product Info
| Energy | 0.30J | Series | VCAS |
| Number of Circuits | 1 | ||
Environmental
| Surge Rating (Watts) | 0.3 J | ||
