TCJA106M006R0300
| Manufacturer | |
| Description | Cap Tant Solid 10uF 6.3V A CASE 20% (3.2 X 1.6 X 1.6mm) SMD 3216-18 0.3 Ohm 125°C T/R Tantalum Capacitors - Polymer SMD 6.3volts 10uF 20% ESR=300mOhms TC 10uF 6,3V 20% Case A 300mOhm CAP TANT 10UF 6.3V 20% 1206 AVX ±20% 10μF 6.3V dc SMD Tantalum Electrolytic Capacitor, 3216-18 ESR 0.3Ω 125°C CAPACITOR TANT, 10UF, 6.3V, 20%, 1206 SMDACASE10UF6.3V Capacitor: tantalum-polymer; 10uF; 6.3V; Case: A; ESR:300mΩ; SMD AVX TCJ 系列 10μF ±20% SMD 钽电容器, 6.3 V 直流, 3216-18 封装, 300mΩ ESR, +125°C |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 4000 | Product | Tantalum Organic Polymer Low ESR |
| Unit Pack | 2000 | Product Category | Tantalum Capacitors - Polymer SMD |
| Factory Pack Quantity | 2000 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85322400 |
| Automotive | NO | ||
Electrical
| ESR | 100kHz | Voltage | 6.3 Vdc |
| Tolerance | 20 % | Capacitance | 10 uF |
| Range deg/s | :AVX - TCJ Series | Voltage Rating | 6.3 V |
| Voltage - Supply | 6.3V | Current - Leakage | 6 uA |
| Capacitance - Input | :1206 [3216 Metric] | Capacitance @ Vr, F | tantalum-polymer |
| Voltage - Supply (Min) | 6.3V | Capacitance @ Frequency | 10µF |
| Dissipation Factor (DF) | 6 | Power Dissipation (Max) | 0.06 |
| ESR (Equivalent Series Resistance) | 0.3 Ohm | ||
Mechanical
| Depth | :1.6mm | Width | 1.6mm |
| Height | 1.6 mm | Length | 3.2mm |
| Weight | 0.00031 | Packaging | Reel |
| Construction | Flat | Mounting Type | Surface Mount |
| Reel Capacity | :2000 | Terminal Type | :Surface Mount (SMD, SMT) |
| Number of Pins | :2 | Package / Case | 3216-18,A |
| Material Finish | :MSL 3 - 168 hours | Length - Overall | 3.2 mm |
| Package Quantity | 2000 | Size / Dimension | 1.6 mm W x 3.2 mm L |
| Tape Width - Max | :8mm | Termination Style | SMD/SMT |
| Dielectric Material | TA2O5 | Mounting Hole Diameter | 1206 |
Product Info
| Spg | 2000 | Type | Tantalum Solid Electrolytic Chip Capacitors with Conductive Polymer Electrode |
| Style | CHIP | Series | TCJ |
| Polarity | Polar | Matchcode | TC10U6,3VAPOLY |
| Manufacturer | A Case | Measuring Range | POLYMER |
| Number of Units | 5 | Standard Leadtime | 12 weeks |
| Base Product Number | 3216 | Manufacturer Size Code | :A |
Environmental
| Temperature - Test | -55°C | Operating Temperature | 125 °C |
| Power Dissipation @ Temperature Rise | 6 | ||
Documents & Media
Similar Parts
NOSA106M006R2000
avx
Cap Niobium 10uF 6.3V 20% (3.2 X 1.6 X 1.6mm) SMD 2 Ohm 125°C T/R Niobium Oxide Capacitors 6.3volts 10uF 20% ESR=2000mOhms CAP NIOB OXIDE 10UF 6.3V 1206 AVX 10μF ±20% 6.3V dc SMD Niobium Capacitor, 3216-18 Package, ESR 2Ω CAPACITOR, CASE A, 10UF, 6.3V OXICAPACASE10UF6.3V
$1.6395
Details

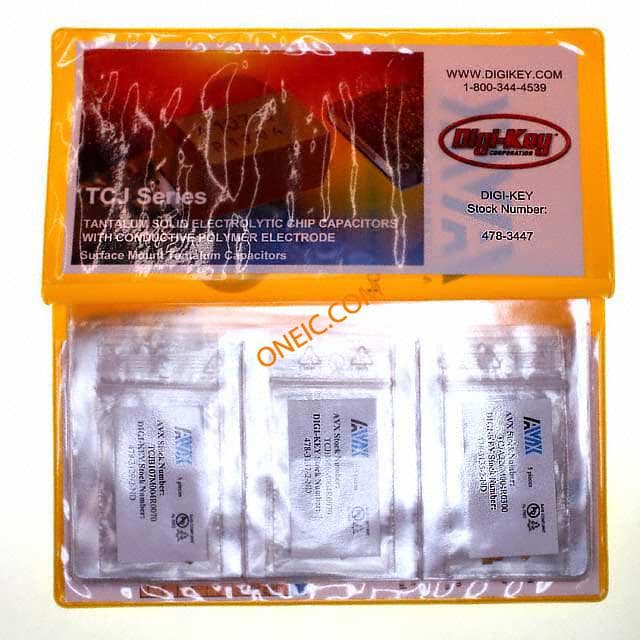

TANTTCJ001D
