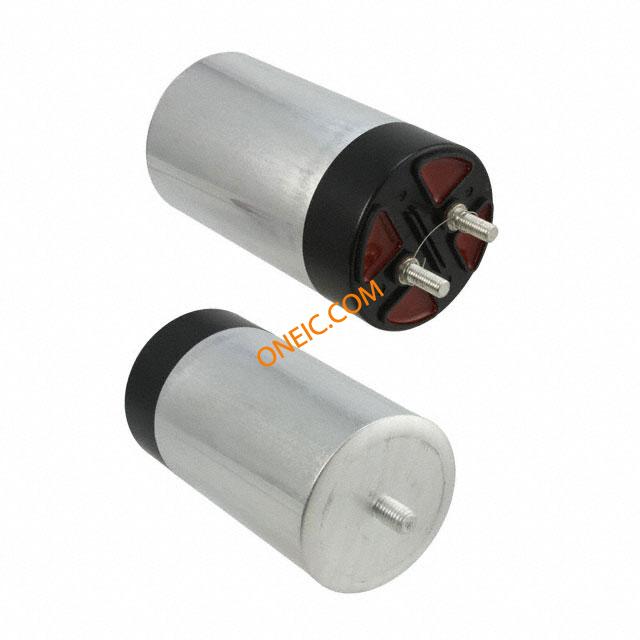

FFLI6U0437K--
| Manufacturer | |
| Description | Cap Film 430uF 1150V PP 10% (85 X 180mm) Stud Mount Aluminum Cylindrical Can 95°C Film Capacitors 1200v 430uF Male Threaded CAP FILM 430UF 1.2KVDC SCREW CAPACITOR PP FILM PP, 430UF, 10%, 1.15KV, Capacitor; PolyproMetallized; Cap430uF; Tol10%; Vol-Rtg1150V; ScrewTerm; Male |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Power Electronics Capacitors | Standard Package | Bulk |
Compliance
| RoHS | RoHS Compliant | Tariff No | 00000000 |
Electrical
| Voltage | 1150 Vdc | Tolerance | 10 % |
| Capacitance | 430 uF | Range deg/s | :AVX - FFLI Series |
| Voltage Rating | 1.15 kV | Capacitance - Input | :Can |
| ESR (Equivalent Series Resistance) | 6.8 mOhms | ||
Mechanical
| Height | 180 mm | Weight | 0 |
| Diameter | 85 mm | Packaging | Bulk |
| Termination | Screw Terminals | Construction | Aluminum Cylindrical Can |
| Lead Spacing | 1.260" (32.00mm) | Mounting Type | Stud Mount |
| Package / Case | 85 X 180 | Material - Core | Polypropylene Metallized |
| Size / Dimension | 3.346" Dia (85.00mm) | Termination Style | Screw Terminal |
| Dielectric Material | PP | Height - Seated (Max) | 7.165" (182.00mm) |
Product Info
| Type | Capacitors for Power Electronics | Series | FFLI |
| Features | DC Filtering | Applications | General Purpose |
| Product Type | Power | ||
Environmental
| Operating Temperature | -40 to 95 °C | ||
Documents & Media
PDF Document
PDF Document
