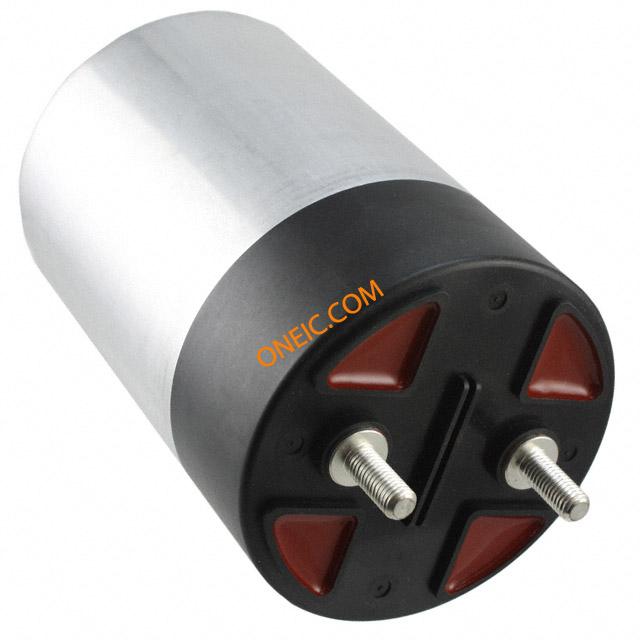

FFLI6L0657K--
| Manufacturer | |
| Description | Cap Film 650uF 1000V PP 10% (100 X 155mm) Stud Mount Aluminum Cylindrical Can 95°C Film Capacitors 1000v 650uF Male Threaded CAP FILM 650UF 1KVDC SCREW CAPACITOR PP FILM PP, 650UF, 10%, 1KV, Capacitor; PolyproMetallized; Cap650uF; Tol10%; Vol-Rtg1000V; ScrewTerm; Male |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Power Electronics Capacitors | Standard Package | Bulk |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85322500 |
Electrical
| Voltage | 1000 Vdc | Tolerance | 10 % |
| Capacitance | 650 uF | Range deg/s | :AVX - FFLI Series |
| Voltage Rating | 1 kV | ESR (Equivalent Series Resistance) | 3.8 mOhms |
Mechanical
| Height | 155 mm | Weight | 0 |
| Diameter | 100 mm | Packaging | Bulk |
| Termination | Screw Terminals | Construction | Aluminum Cylindrical Can |
| Lead Spacing | 1.969" (50.00mm) | Mounting Type | Stud Mount |
| Package / Case | 100 X 155 | Material - Core | Polypropylene Metallized |
| Size / Dimension | 3.937" Dia (100.00mm) | Termination Style | Screw Terminal |
| Dielectric Material | PP | Height - Seated (Max) | 6.181" (157.00mm) |
Product Info
| Type | Capacitors for Power Electronics | Series | FFLI |
| Features | DC Filtering | Applications | General Purpose |
| Product Type | Power | ||
Environmental
| Rated Life | :10000 hours @ 65°C | Operating Temperature | -40 to 95 °C |
