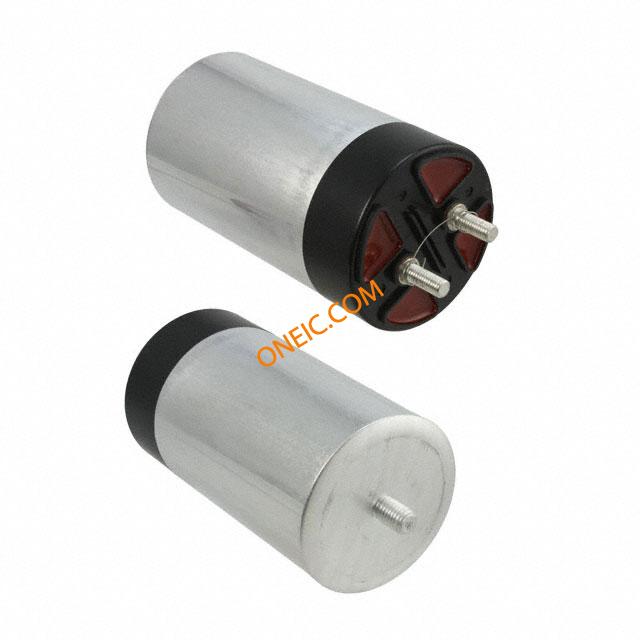

FFLI6B0687K--
| Manufacturer | |
| Description | Cap Film 680uF 800V PP 10% (85 X 155mm) Stud Mount Aluminum Cylindrical Can 95°C Film Capacitors 800v 680uF Male Threaded CAP FILM 680UF 800VDC SCREW CAPACITOR PP FILM PP, 680UF, 800V, CAN Capacitor; PolyproMetallized; Cap680uF; Tol10%; Vol-Rtg800V; ScrewTerm; Male |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Power Electronics Capacitors | Standard Package | Bulk |
Compliance
| RoHS | RoHS Compliant | Tariff No | 00000000 |
Electrical
| Voltage | 800 Vdc | Tolerance | 10 % |
| Capacitance | 680 uF | Voltage Rating | 800 V |
| Capacitance - Input | :CAN | ESR (Equivalent Series Resistance) | 4.3 mOhms |
Mechanical
| Height | 155 mm | Weight | 0 |
| Diameter | 85 mm | Packaging | Bulk |
| Termination | Screw Terminals | Construction | Aluminum Cylindrical Can |
| Lead Spacing | 1.260" (32.00mm) | Mounting Type | Stud Mount |
| Package / Case | 85 X 155 | Material - Core | Polypropylene Metallized |
| Size / Dimension | 3.346" Dia (85.00mm) | Termination Style | Screw Terminal |
| Dielectric Material | PP | Height - Seated (Max) | 6.181" (157.00mm) |
Product Info
| Type | Capacitors for Power Electronics | Series | FFLI |
| Features | DC Filtering | Applications | General Purpose |
| Product Type | Power | ||
Environmental
| Rated Life | :10000 hours @ 65°C | Operating Temperature | -40 to 95 °C |
