点击放大查看
208477096002025
| Manufacturer | |
| Description | Conn DIN 41612 F 96 POS 2.54mm Solder RA Thru-Hole CONN DIN RECEPT R/A 96POS 3ROWS DIN 41612 Connectors 3 X 96 FEMALE R.A. Inverted |
| Category |
Business
| Other Names | 478-1949 | Product Category | DIN 41612 Connectors |
| Standard Package | 540 | Factory Pack Quantity | 90 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Contact Resistance | 20 mohm | Current Rating (Max) | 3A |
Mechanical
| Pitch | 0.100" (2.54mm) | Height | 10.5 mm |
| Packaging | Bulk | Termination | Solder |
| Length - Tail | 3 mm | Mounting Type | Through Hole |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Mounting Style | Through Hole | Number of Rows | 3 |
| Contact Material | Phosphor Bronze | Housing Material | Polyester |
| Length - Overall | 93.9 mm | Termination Style | Solder |
| Number of Contacts | 96 | Number of Positions | 96 |
| Material - Insulation | Polyester Thermoplastic, Glass Filled | ||
Product Info
| Type | DIN 41612 | Style | R |
| Gender | F | Series | 8477 |
| Product Type | Receptacles | Number of Positions Loaded | All |
Environmental
| Level, Class | 2 | Operating Temperature | -65°C ~ 125°C |
Documents & Media
Similar Parts
108477096007025
AVX Connectors
DIN 41612 Connectors 96POS HDR INVRTD STR CONN HEADER INVRTD 96POS STR
108477096010025
AVX Connectors
DIN 41612 Connectors 96POS HDR INVRT CONN HEADR INVRT 96POS SOLD LOOP
128477096007049
AVX Connectors
DIN 41612 コネクタ 96POS HDR INVRT STR CONN HEADER INVRT 96POS STR DIN 41612 Connectors 96POS HDR INVRT STR
168477096002025
AVX Connectors
DIN 41612 Connectors 96POS HEADER STR CONNECTOR HEADER 96POS STR
108477096009025
AVX Connectors
DIN 41612 コネクタ 96POS HDR INVRT CONN HEADR INVRT 96POS SOLD HOLE DIN 41612 Connectors 96POS HDR INVRT
108477096001049
AVX Connectors
DIN 41612 Connectors 96POS HDR INVRTD STR CONN HEADER INVRTD 96POS STR
128477096001025
AVX Connectors
DIN 41612 Connectors 96POS HDR INVRT STR CONN HEADER INVRT 96POS STR
108477096002025
AVX
Conn DIN 41612 M 96 POS 2.54mm Solder ST Thru-Hole CONN HEADER INVRTD 96POS STR DIN 41612 Connectors 3 X 96 MALE STRAIGHT Inverted

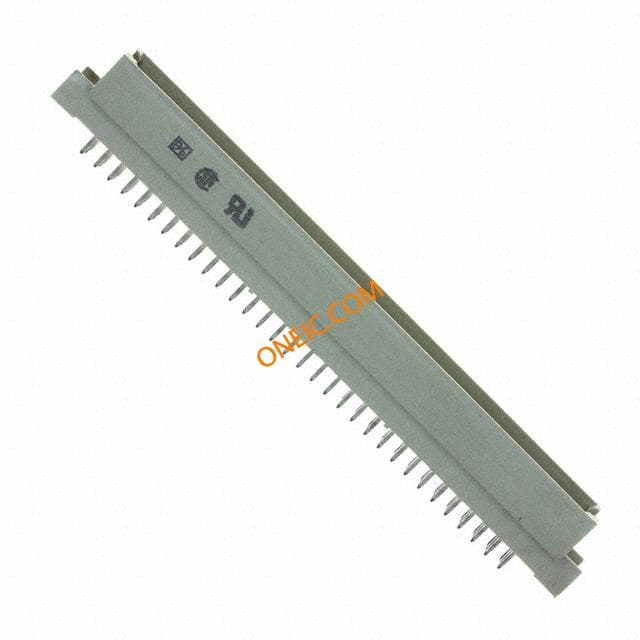

108477096001025
