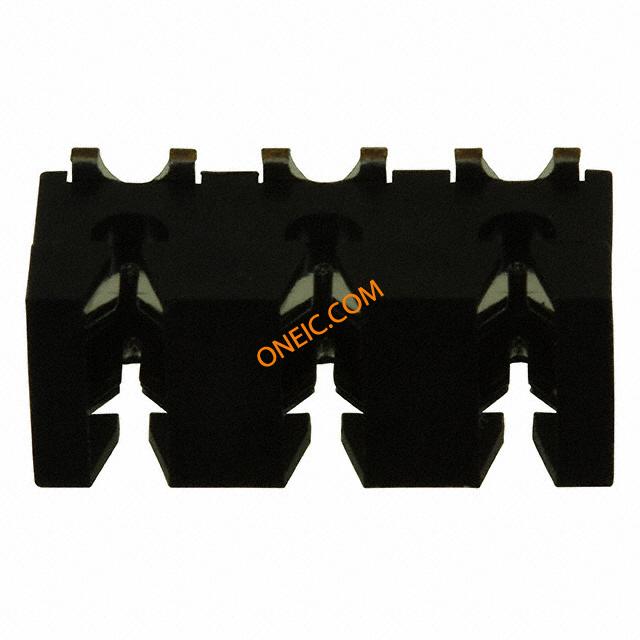

009176003032006
| Manufacturer | |
| Description | Conn IDC Connector F 3 POS 4mm Solder ST SMD CONN IDC 3 POS SMD 24 AWG Headers & Wire Housings 3 WAY WIRE TO BD 24 AWG STRANDED |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 478-4620-2 | Product Category | Headers & Wire Housings |
| Standard Package | 1,000 | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 10 A |
| Voltage - Input (Min) | 250VAC | ||
Mechanical
| Color | Black | Depth | 5 |
| Pitch | 0.157" (4.00mm) | Height | 5.1 |
| Packaging | Tape & Reel (TR) | Wire Gauge | 24 AWG, Stranded |
| Termination | Solder | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Individual Wires |
| Contact Finish | Tin Over Nickel | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Housing Material | Nylon 46 |
| Length - Overall | 12 | Cable Termination | IDC |
| Termination Style | SMD | Number of Contacts | 3 |
| Number of Positions | 3 | ||
Product Info
| Type | IDC Connector | Gender | F |
| Series | 9176 | Features | Feed Through |
| Product Type | Connectors | Application Specifics | Wire-to-Board |
| Number of Positions Loaded | All | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
069176701602000
AVX
Hand Tools ASSEMBLY BIT INSUL DIA 1.60 BIT FOR 9176 HAND TOOL 1.6MM Wire To Board Strip Idc Connector Insertion Tool Tool: screwdriver bit; for IDC connectors; 9176; 22÷24AWG
$80.9200
Details

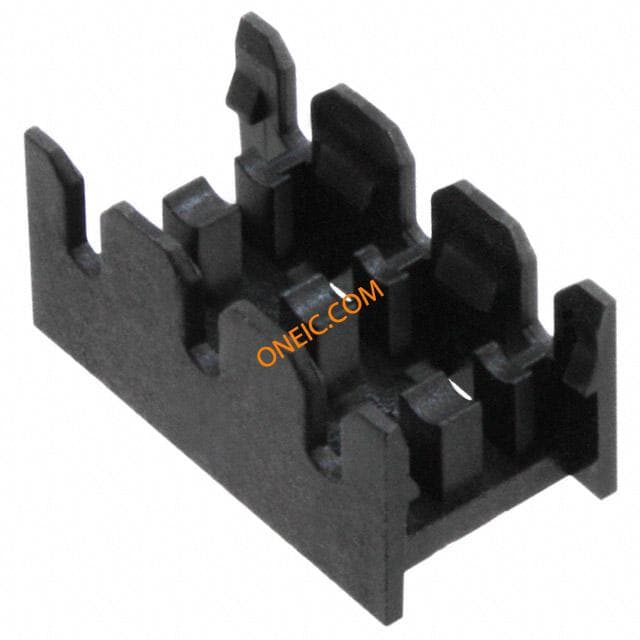

609176003016000
AVX
Headers & Wire Housings THRU-WIRE CAP BLACK 1DIA Connector Accessories Cap Black Bag CAP 9176 3POS CAP 1.1-1.6MM THRU
$1.6320
Details

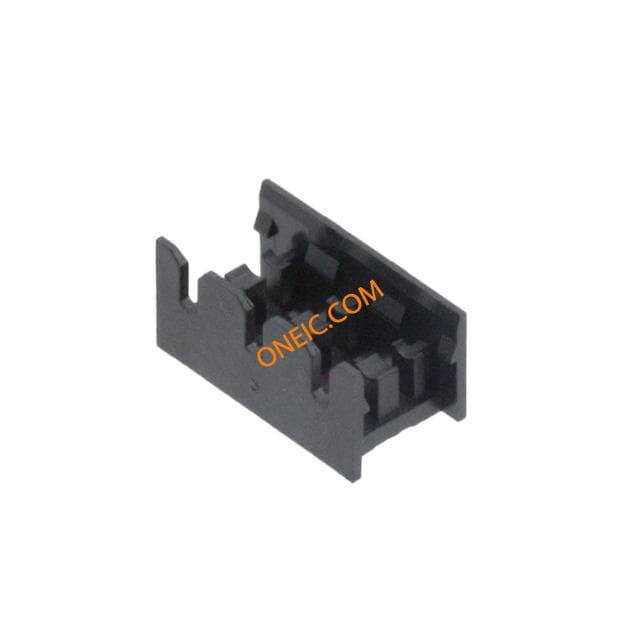

609176003016099
