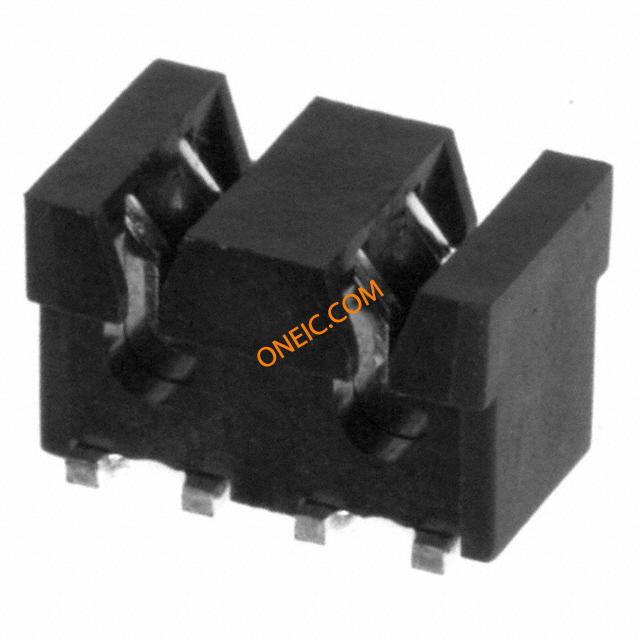

009176002022006
| Manufacturer | |
| Description | Conn IDC Connector F 2 POS 4mm Solder ST SMD CONN IDC 2 POS SMD 22 AWG Headers & Wire Housings 2 WAY WIRE TO BD 22 AWG STRANDED |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 478-4615-2 | Product Category | Headers & Wire Housings |
| Standard Package | 1,000 | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 10 A |
| Voltage - Input (Min) | 250VAC | ||
Mechanical
| Color | Black | Depth | 5 |
| Pitch | 0.157" (4.00mm) | Height | 5.1 |
| Packaging | Tape & Reel (TR) | Wire Gauge | 22 AWG, Stranded |
| Termination | Solder | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Individual Wires |
| Contact Finish | Tin Over Nickel | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Housing Material | Nylon 46 |
| Length - Overall | 8 | Cable Termination | IDC |
| Termination Style | SMD | Number of Contacts | 2 |
| Number of Positions | 2 | ||
Product Info
| Type | IDC Connector | Gender | F |
| Series | 9176 | Features | Feed Through |
| Product Type | Connectors | Application Specifics | Wire-to-Board |
| Number of Positions Loaded | All | ||
Documents & Media
PDF Document
PDF Document
Similar Parts

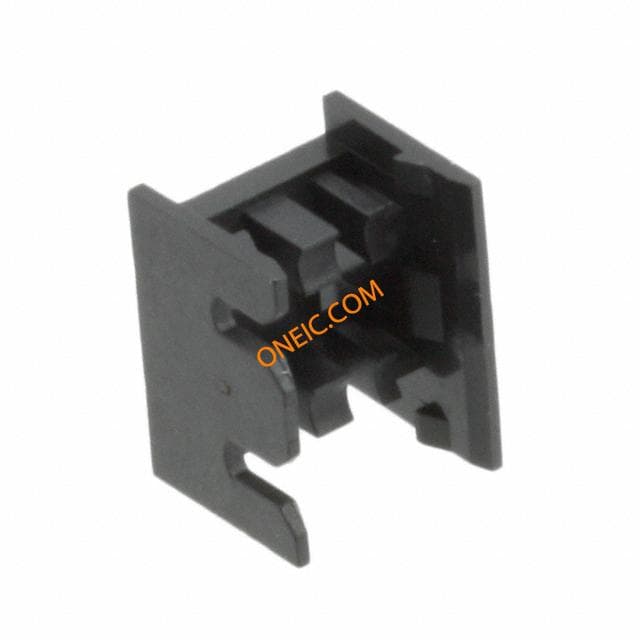

609176002016099
avx / elco
ACCESSORY CAP, BLACK ; WIRE STOP Connector Accessories Cap CAP 9176 2POS CAP 1.1-1.6MM STOP Headers & Wire Housings WIRE STOP CAP BLACK 1DIA
$1.4770
Details
069176701602000
AVX
Hand Tools ASSEMBLY BIT INSUL DIA 1.60 BIT FOR 9176 HAND TOOL 1.6MM Wire To Board Strip Idc Connector Insertion Tool Tool: screwdriver bit; for IDC connectors; 9176; 22÷24AWG
$80.9200
Details

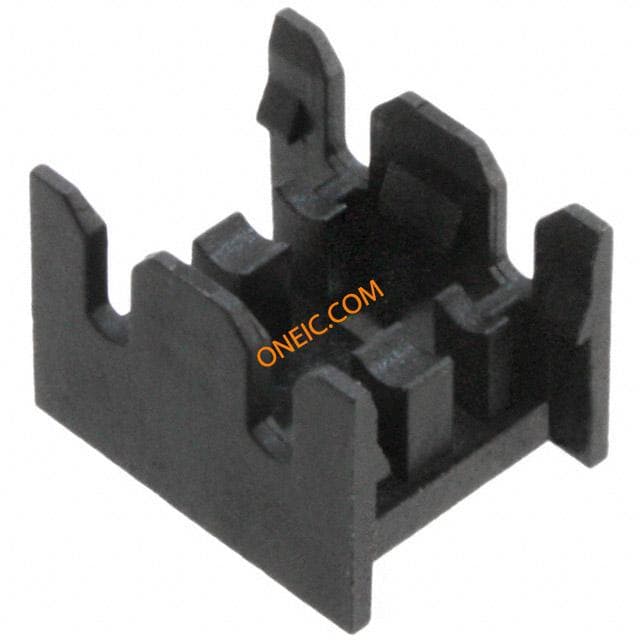

609176002016000
AVX
Headers & Wire Housings THRU-WIRE CAP BLACK 1 DIA Connector Accessories Cap CAP 9176 2POS CAP 1.1-1.6MM THRU
$1.5110
Details
