009176002001006
| Manufacturer | |
| Description | Conn IDC Connector F 2 POS 4mm Solder ST SMD CONN IDC 2 POS SMD 18 AWG Headers & Wire Housings 2 WAY WIRE TO BD 18 AWG STRANDED WIRE-BOARD CONNECTOR RECEPTACLE 2POS 4MM |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 478-4613-2 | Product Category | Headers & Wire Housings |
| Standard Package | 1,000 | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 10 A |
| Voltage - Input (Min) | 250VAC | ||
Mechanical
| Color | Black | Depth | 5 |
| Pitch | 4 mm | Height | 5.1 |
| Weight | 0.00068 | Packaging | Tape & Reel (TR) |
| Wire Gauge | 18 AWG, Stranded | Termination | Solder |
| Housing Color | Black | Mounting Type | Straight |
| Connector Type | Individual Wires | Contact Finish | Tin Over Nickel |
| Number of Rows | 1 | Contact Material | Phosphor Bronze |
| Housing Material | Nylon 46 | Length - Overall | 8 |
| Cable Termination | IDC | Termination Style | SMD |
| Number of Contacts | 2 | Contact Termination | :Surface Mount Vertical |
| Number of Positions | 2 | ||
Product Info
| Type | IDC Connector | Gender | F |
| Series | 9176 | Features | Feed Through |
| Product Type | Connectors | Application Specifics | Wire-to-Board |
| Number of Positions Loaded | All | ||
Documents & Media
PDF Document
PDF Document
Similar Parts

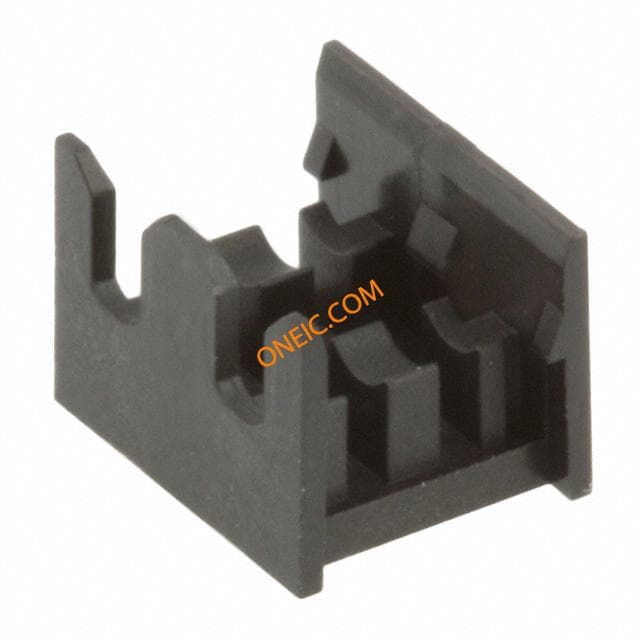

609176002021099
avx / elco
ACCESSORY CAP, BLACK ; WIRE STOP Connector Accessories Cap CAP 9176 2POS CAP 1.6-2.1MM STOP Headers & Wire Housings WIRE STOP CAP BLACK 1.5DIA
$1.4328
Details
069176701601000
AVX
Hand Tools ASSEMBLY BIT INSUL DIA 2.10 Wire To Board Strip Idc Connector Insertion Tool BIT FOR 9176 HAND TOOL 2.1MM Tool: screwdriver bit; for IDC connectors; 9176; 18÷20AWG
$58.8200
Details

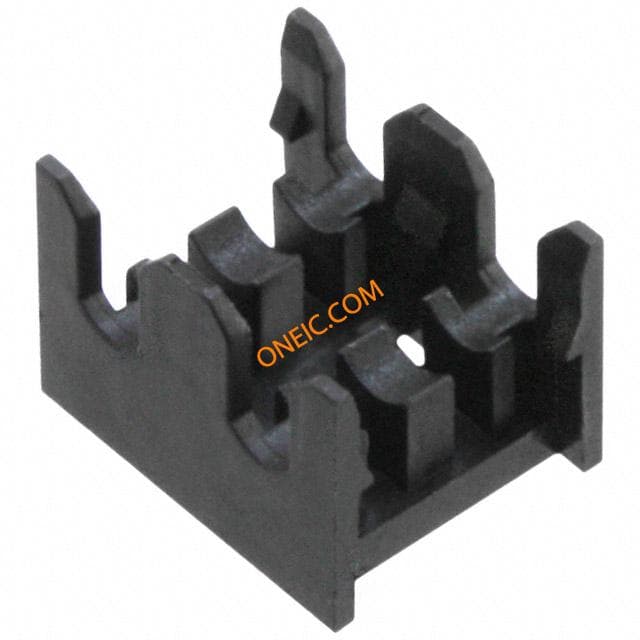

609176002021000
