009176001011106
| Manufacturer | |
| Description | Conn IDC Connector F 1 POS Solder ST SMD CONN IDC 1 POS 20 AWG WHITE SMD Headers & Wire Housings 1 WAY WIRE TO BD 20AWG STRANDED |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 478-6082-2 | Product Category | Headers & Wire Housings |
| Standard Package | Tape & Reel | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 10 A |
| Voltage - Input (Min) | 250VAC | ||
Mechanical
| Color | White | Depth | 5 |
| Pitch | 0.157" (4.00mm) | Height | 5.1 |
| Packaging | Tape & Reel (TR) | Wire Gauge | 20 AWG, Stranded |
| Termination | Solder | Housing Color | White |
| Mounting Type | Straight | Connector Type | Individual Wires |
| Contact Finish | Tin Over Nickel | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Housing Material | Nylon 46 |
| Length - Overall | 4 | Cable Termination | IDC |
| Termination Style | SMD | Number of Contacts | 1 |
| Number of Positions | 1 | ||
Product Info
| Type | IDC Connector | Gender | F |
| Series | 9176 | Features | Feed Through |
| Product Type | Connectors | Application Specifics | Wire-to-Board |
| Number of Positions Loaded | All | ||
Documents & Media
PDF Document
PDF Document
Similar Parts

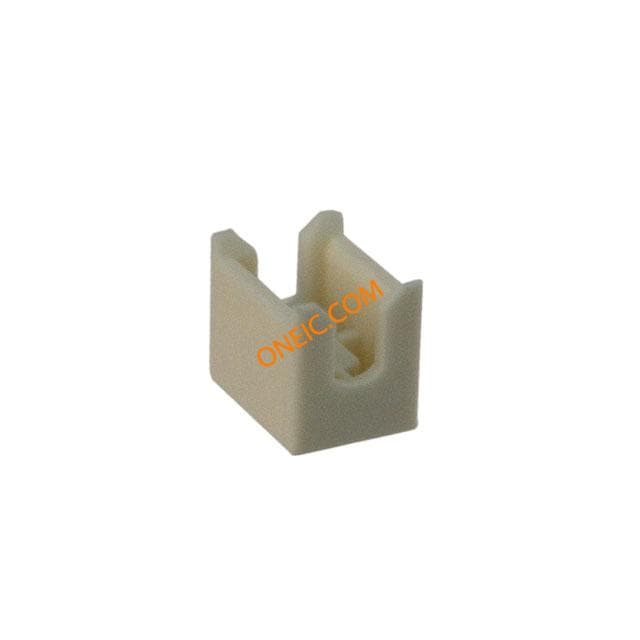

609176001521100
