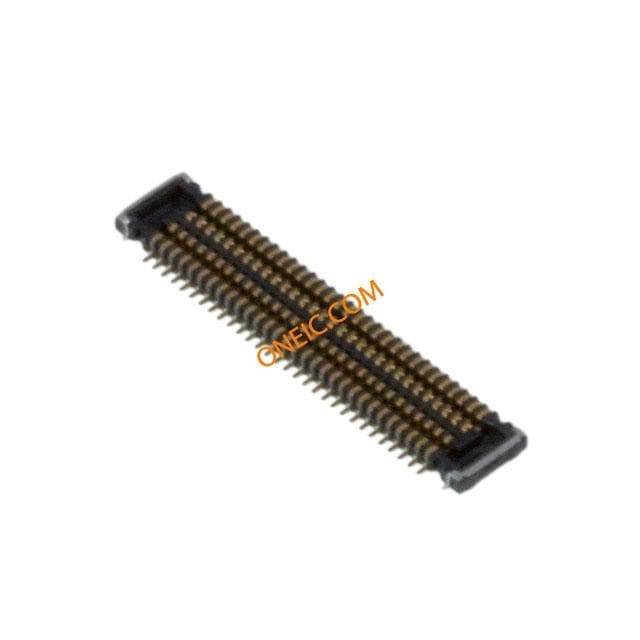

145802060002829+
| Manufacturer | |
| Description | Board to Board & Mezzanine Connectors 60P .04MM VERT PLUG W/METAL TAB W/O BOSS Conn Board to Board PL 60 POS 0.4mm Solder ST SMD T/R CONN PLUG 60POS .4MM BOARD-BOARD Conn Board to Board PL 20 POS 0.4mm Solder ST SMD T/R |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 478-4945-2 | Product Category | Board to Board & Mezzanine Connectors |
| Standard Package | 2,000 | Factory Pack Quantity | 2000 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Current Rating (Max) | 0.3 A | Voltage - Input (Min) | 50VDC|50VAC |
| Voltage - Supply (Min) | 50VDC/50VAC | ||
Mechanical
| Depth | 1.75 mm | Pitch | 0.016" (0.40mm) |
| Height | 0.66 | Packaging | Reel |
| Termination | Solder | Mounting Type | Surface Mount |
| Connector Type | Plug, Outer Shroud Contacts | Contact Finish | Gold |
| Mounting Style | Surface Mount | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | Plastic |
| Length - Overall | 5.76 mm | Height Above Board | 0.026" (0.65mm) |
| Number of Contacts | 60 | Number of Positions | 60 |
| Mated Stacking Heights | 0.8mm | Contact Finish Thickness | 3.9µin (0.10µm) |
Product Info
| Type | Board to Board | Gender | PL |
| Series | 5802 | Features | Board Guide, Solder Retention |
Environmental
| Operating Temperature | -40C to 85C | ||
