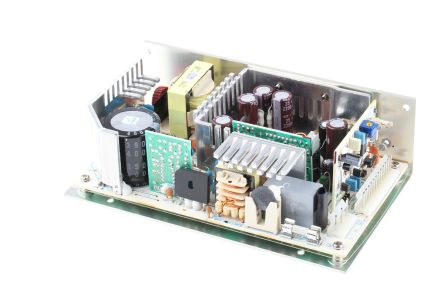

LPQ112-B
| Manufacturer | |
| Description | PWR SUPP 110W 5/12/12/5-25V BRKT Artesyn Embedded Technologies 110W 4输出 嵌入式开关模式电源 SMPS , 120 → 300 V dc, 85 → 264 V ac输入 |
对参数有疑问？问 AI 助手
Electrical
| Noise | 50 mV Pk-Pk, 120 mV Pk-Pk, 240 mV Pk-Pk | Power - Max | 110W |
| Power (Watts) | 70% | Power - Input | Switching (Open Frame) |
| Power - Rated | 110W | Voltage Rating | 85 → 264 V ac, 120 → 300 V dc |
| Voltage - Supply | 5V, ±12V, 25V | Number of Outputs | 4 |
| Current Rating (Max) | 25 VDC @ 2.5A | Current - Output (Max) | -12 VDC @ 700mA |
| Voltage Regulation - Load | ±2 %, ±3 %, ±5 % | ||
Mechanical
| Size | 4.28" L x 7.30" W x 2.20" H (108.6mm x 185.5mm x 56.0mm) | Depth | 56mm |
| Width | 108.6mm | Length | 185.5mm |
| Weight | 0.57kg | Package Quantity | 开放式 |
Product Info
| Type | Standard Product | Series | LPQ110 |
| Function | Y | Output Configuration | Chassis Mount |
Environmental
| Operational Life | 550000h | Operating Temperature | 0°C ~ 50°C |
| Maximum Temperature Limit | +50°C | ||
