32-6554-10
| Manufacturer | |

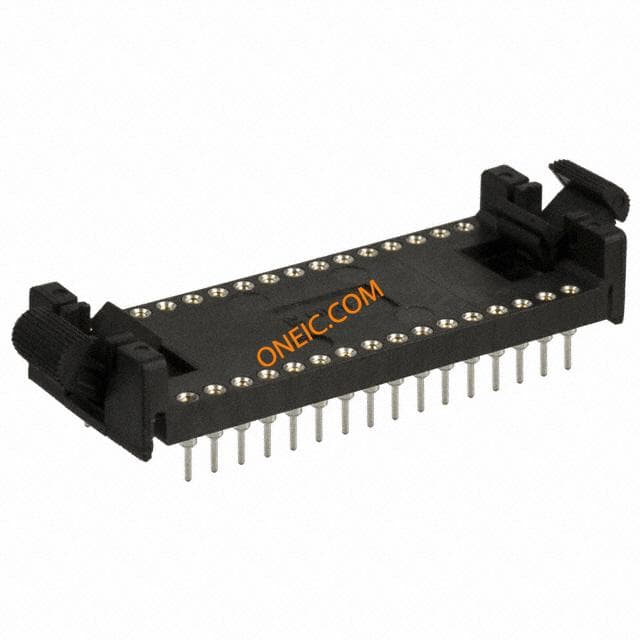

| Description | 32 PIN ZIF SOCKET, TIN 32way universal ZIFsocket,0.1in pitch 1A IC & Component Sockets 32P TEST SOCKET TIN SOCKET IC, ZIF, 32WAY Aries Electronics 2.54mm 节距, 32 路 通孔 通用 ZIF 测试插座 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | DIP / SIP Sockets | Product Category | IC & Component Sockets |
| Standard Package | 8 | Factory Pack Quantity | 8 |
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Dielectric Strength | :1000V | Current Rating (Max) | 1A |
| Insulation Resistance | :1000Mohm | Connector - Voltage Input | :DIP |
Mechanical
| Pitch | 0.100" (2.54mm) | Weight | 0.03 |
| Termination | Solder | Lead Spacing | :2.54mm |
| Pitch - Post | :15.24mm | Mounting Type | Through Hole |
| Connector Type | :DIP | Contact Finish | Tin |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Contact Material | Beryllium Copper | Housing Material | PPS |
| Termination Style | Solder Pin | Number of Contacts | 32 |
| Contact Termination | :Through Hole Vertical | Contact Finish Thickness | 10µin (0.25µm) |
| 1st Connector Mounting Type | :PC Board | Number of Positions or Pins (Grid) | 32 (2 x 16) |
Product Info
| Type | DIP, ZIF (ZIP) | Gender | Female |
| Series | X55X | Features | Closed Frame |
Environmental
| Mating Cycles | :25000 | ||
Documents & Media
Online Document
