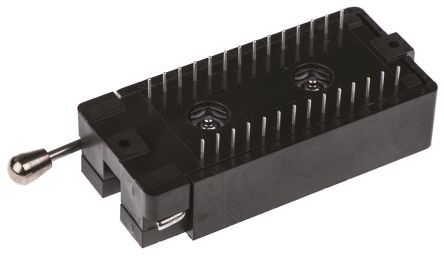

点击放大查看
28-6554-10
| Manufacturer | |
| Description | 28 PIN ZIF SOCKET,TIN 28way universal ZIF socket,0.3/0.6in IC & Component Sockets 28P TEST SOCKET TIN SOCKET IC, ZIF, 28WAY Aries Electronics 2.54mm 节距, 28 路 通孔 通用 ZIF 测试插座 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | DIP / SIP Sockets | Product Category | IC & Component Sockets |
| Standard Package | 9 | Factory Pack Quantity | 9 |
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Dielectric Strength | :1000V | Current Rating (Max) | 1A |
| Insulation Resistance | :1000Mohm | Connector - Voltage Input | :DIP |
Mechanical
| Pitch | 0.100" (2.54mm) | Weight | 0.02 |
| Packaging | Tube | Termination | Solder |
| Lead Spacing | :2.54mm | Pitch - Post | :15.24mm |
| Mounting Type | Through Hole | Connector Type | :DIP |
| Contact Finish | Tin | Mounting Style | Through Hole |
| Number of Rows | 2 | Contact Material | Beryllium Copper |
| Housing Material | PPS | Termination Style | Solder Pin |
| Number of Contacts | 28 | Contact Termination | :Through Hole Vertical |
| Contact Finish Thickness | 10µin (0.25µm) | 1st Connector Mounting Type | :PC Board |
| Number of Positions or Pins (Grid) | 28 (2 x 14) | ||
Product Info
| Type | DIP, ZIF (ZIP) | Gender | Female |
| Series | X55X | Features | Closed Frame |
Environmental
| Mating Cycles | :25000 | ||
