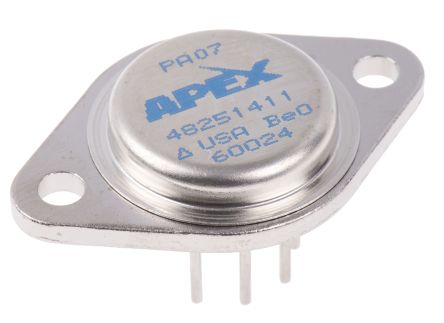

PA07
| Manufacturer | |
| Description | PA07, Operational Amplifier High Voltage, 1.3MHz, 8-Pin TO-3 Apex 高电压 运算放大器, 1.3MHz, 8针 TO-3 |
| Category |
对参数有疑问？问 AI 助手
Electrical
| Slew Rate | 5V/µs | Power - Input | 双 |
| Conversion Type | 5V/µs | Voltage - Supply | ±35V |
| Power Supply Type | Dual | Number of Channels | 1 |
| Number of Elements | 1 | Typical Voltage Gain | 95 dB |
| Gain Bandwidth Product | 1.3MHz | Voltage - Supply, Dual (V+/-) | ±35V |
| Voltage - Output Difference (Typ) @ Distance | 95 dB | ||
Mechanical
| Width | 25.4mm | Height | 6.4mm |
| Length | 38.9mm | Mounting Type | Through Hole |
| Number of Pins | 8 | Package Cooled | TO-3 |
| Package Quantity | TO-3 | Size / Dimension | 38.9 x 25.4 x 6.4mm |
| Number of Positions | 8 | ||
Product Info
| Amplifier Type | High Voltage | ||
Environmental
| Operating Temperature | +85 °C | ||
