QS121XXO12
| Manufacturer | |

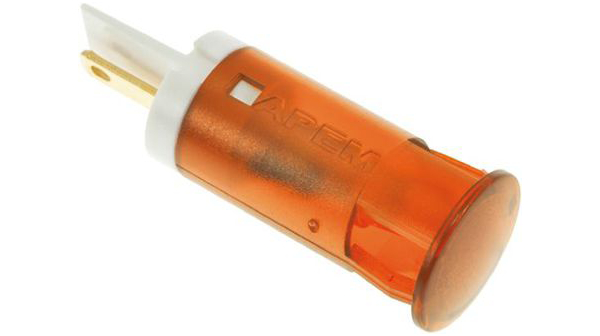

| Description | 12mm snap-in panel LED, orange 12Vdc LED Panel Mount Indicators 12mm SOLD LUG/FASTON Orange 12V LED Indicator orange 12 VDC, QS121XXO12, Apem Apem 14 mm 薄型 橙色 LED 面板安装 指示器, Faston，焊接接线片接端 12mm安装孔尺寸, 12 V 直流 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current | 20 | Voltage | 12 VDC |
| Lamp Type | LED | Optic Size | 12 mm |
| Luminous Flux | 30 mcd | Voltage Rating | 12 V dc |
| LED Forward Current | 20 mA | LED Forward Voltage | 2 V |
| Current Rating (Max) | 20 mA | ||
Mechanical
| Length | 28.5 mm | LED Color | 橙色 |
| Frame Type | Recessed | Lens Color | Orange Diffused |
| Light Color | Orange | Termination | Faston, Solder Lug |
| Hole Diameter | 12mm | Housing Color | Orange |
| Lens Diameter | 14 mm | Connector Type | Faston，焊接接线片 |
| Mounting Style | Snap-In | Termination Style | Soldering lugs |
| Color - Connectors | 橙色 | Diameter - Outside | 12 |
| Illumination Color | Orange | Mounting Hole Diameter | 12mm |
| Diameter - Outside, Non-Expanded | 14 x 38.5 mm | ||
Product Info
| Type | Panel Mount | Series | QS |
| Lens Type | 薄型 | Lamp/Magnifier Type | 14 mm |
| Angle of Incidence (AOI) | 30 | ||
Environmental
| Operating Temperature | -30...+85 °C | Luminous Flux @ Current/Temperature | 30 mcd |
