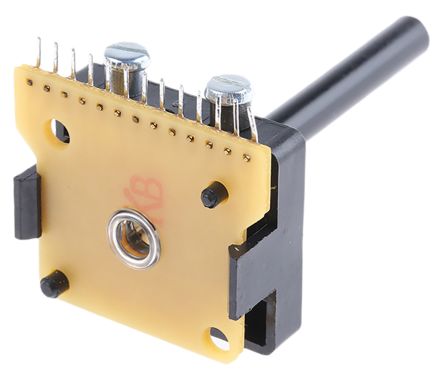

PT 6002
| Manufacturer | |
| Description | Rotary Switch, 500 mA 12-Way , 250V ac/dc Apem 12位置 旋转开关 , SP12T 触点配置, 250V ac/dc额定电压, 500 mA, 35.25 x 31 x 61.7mm |
| Category |
对参数有疑问？问 AI 助手
Electrical
| Voltage Rating | 250V ac/dc | Current Rating (Max) | 500 mA @ 250 V 交流 |
| Contact Rating (Current) | 500 mA | ||
Mechanical
| Depth | 31mm | Width | 35.25mm |
| Height | 61.7mm | Mounting Type | PCB |
| Terminal Type | Through Hole | Connector Type | 通孔 |
| Contact Material | Silver-plated Phosphor Bronze | Housing Material | 尼龙 66 |
| Size / Dimension | 35.25 x 31 x 61.7mm | Number of Contacts | 1 |
| Number of Positions | 12 | Contact Layout, Typical | SP12T |
| Material - Housing & Prism | PA 6.6 | ||
Product Info
| Function | Y | ||
Environmental
| Mechanical Life | 10000Operations | Operating Temperature | +85°C |
