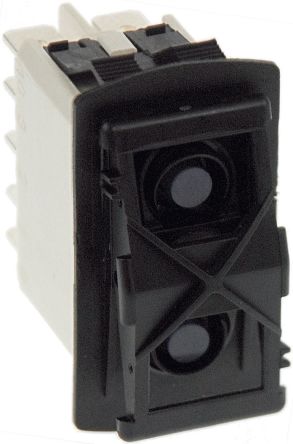

KR45CAKKKG
| Manufacturer | |
| Description | IP68 Illuminated DP Rocker Switch, Momentary-On, 5 A @ 24 V dc SWITCH, ROCKER CASE, DP MOM-ON, IP68 Apem DPST 照明 翘板开关, 开-(开), 5A @ 24V 直流, IP68 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85365007 |
Electrical
| Contact Resistance | 10mΩ | Current - Max/Contact | :10A |
| Insulation Resistance | :1Mohm | Switch Function/Rating | Momentary-On |
| Contact Rating (Current) | 5 A @ 24 V dc | Voltage - Supply (Vcc/Vdd) | :24V |
Mechanical
| Width | 21.08mm | Length | :36.8mm |
| Weight | 0.025 | Mounting Type | Panel Mount |
| Terminal Type | Solder, Tab | Panel Thickness | :3.5mm |
| Contact Material | Silver | Color - Connectors | :Black |
| Illumination Color | :Green | Panel Cutout Shape | 36.8mm |
| Color - Actuator/Cap | :Black | Contact Layout, Typical | DP |
| Material - Housing & Prism | PA 6.6 | 1st Connector Mounting Type | :Panel |
Product Info
| Series | :KR | Illumination | Yes |
Environmental
| Seal Rating | IP68 | Mechanical Life | 150000Operations |
| Operating Temperature | +85°C | ||
