IPR1SAD0LOG105
| Manufacturer | |

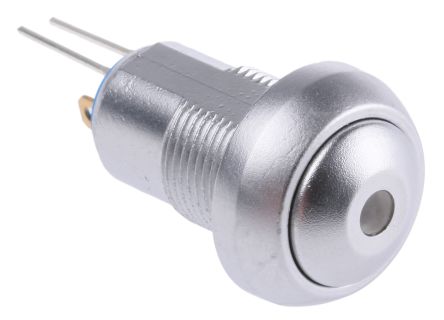

| Description | Switch,PB,latching,green LED 2Vdc Apem IP67 SP - 常开 面板安装 关 - 开 照明 按钮开关, 5 A@ 28 V 直流 |
| Category |
对参数有疑问？问 AI 助手
Electrical
| LED | 绿色 | Switch Function | 关 - 开 |
| Current Rating (Max) | 5 A@ 28 V 直流 | Switch Function/Rating | Off-On |
| Contact Rating (Current) | 1 A @ 72 V dc | ||
Mechanical
| LED Color | Green | Light Color | 是 |
| Actuator Type | Button | Mounting Type | Panel Mount |
| Terminal Type | Solder | Connector Type | 焊接 |
| Contact Material | Gold Plated Silver | Panel Cutout Shape | 13.6mm |
| Contact Layout, Typical | SP-NO | Panel Cutout Dimensions | 13.6mm |
Product Info
| Illumination | Yes | ||
Environmental
| Seal Rating | IP67 | Ingress Protection | IP67 |
| Operating Temperature | +85°C | ||
