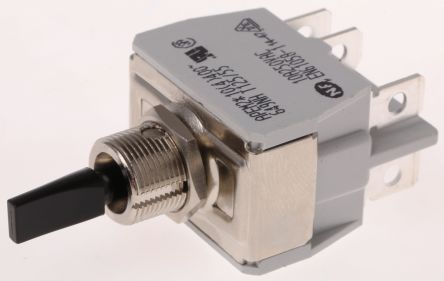

649NH/2
| Manufacturer | |
| Description | Toggle Switches DPDT 10A 125V 13.5mm On-Off-On DP Toggle Switch On-Off-On, 15 A @ 250 V ac SWITCH, DPDT, CTR OFF TOGGLE SWITCH, HIGH AMPERAGE, DOUBLE POLE, ON - OFF - ON Apem DP 切换开关 , 开 - 关 - 开, 15 A@ 250 V 交流 |
| Category |
对参数有疑问？问 AI 助手
Business
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85365019 | ||
Electrical
| Voltage - Core | :250V | Voltage Rating | 250 V |
| Contact Resistance | 10mΩ | Voltage - Breakdown | :2500V |
| Current Rating (Max) | 15 A | Current - Max/Contact | :15A |
| Insulation Resistance | :1000Mohm | Switch Function/Rating | On-Off-On |
| Contact Rating (Current) | 15 A @ 250 V ac | Contact Rating @ Voltage | :15A |
| Connector - Voltage Input | :Solder | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |
Mechanical
| Depth | :29.7mm | Width | :21.5mm |
| Height | :21.5mm | Length | :21.5mm |
| Weight | 0.03 | Tab Width | :0.8mm |
| Thread Size | :12X0.75SI | Actuator Type | Paddle |
| Mounting Type | Panel Mount | Terminal Type | Solder, Tab |
| Thread Length | :11.5mm | Actuator Length | 13.5mm |
| Contact Material | Silver Nickel Alloy | Length - Overall | :13.5mm |
| Actuator Material | PA | Actuator Style/Size | :Flat Lever |
| Number of Positions | :10000 | Bushing, Grommet Type | M12 |
| Switch Actuation Level | :Flat Lever | Contact Layout, Typical | DP |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Series | :600 | ||
Environmental
| Operating Temperature | +55°C | ||
