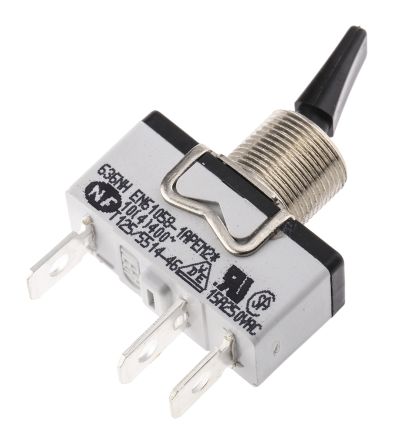

636NH/2
| Manufacturer | |
| Description | Toggle Switches SPDT NYL ON-NONE-ON SP Toggle Switch On-On, 15 A @ 12 V dc, 15 A @ 250 V ac SWITCH, SPDT TOGGLE SWITCH, HIGH AMPERAGE, SINGLE POLE, ON - NONE - ON Apem SP 切换开关 , 开 - 开, 15 A@ 12 V 直流，15 A@ 250 V 交流 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Toggle Switches | Factory Pack Quantity | 25 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85365007 | Approval Agency | :CSA, UL |
Electrical
| Voltage - Core | :250V | Voltage Rating | 250 V |
| Switch Function | ON - NONE - ON | Contact Resistance | 10mΩ |
| Voltage - Breakdown | :2500V | Current - Max/Contact | :15A |
| Insulation Resistance | :1000Mohm | Switch Function/Rating | On-On |
| Contact Rating (Current) | 15 A @ 12 V dc, 15 A @ 250 V ac | Contact Rating @ Voltage | :15A |
| Connector - Voltage Input | :Quick Connect, Solder | Voltage - Supply (Vcc/Vdd) | :24V |
| Voltage - Rated AC (Phase to Ground/Neutral) | :250V | ||
Mechanical
| Depth | :29.5mm | Width | :14mm |
| Height | :15mm | Length | :15mm |
| Weight | 0.016 | Tab Width | :0.8mm |
| Thread Size | :12X0.75SI | Contact Form | SPDT |
| Actuator Type | Paddle | Mounting Type | Panel Mount |
| Terminal Type | Solder, Tab | Thread Length | :11.5mm |
| Contact Finish | Silver | Mounting Style | Panel |
| Actuator Length | 13.5mm | Contact Material | Silver Nickel Alloy |
| Length - Overall | :13.5mm | Actuator Material | PA |
| Termination Style | Solder Lug | Actuator Style/Size | :Flat Lever |
| Number of Positions | :10000 | Bushing, Grommet Type | M12 |
| Switch Actuation Level | :Flat Lever | Contact Layout, Typical | SP |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Series | 600 H | ||
Environmental
| Seal Rating | Sealed | Operating Temperature | +55°C |
