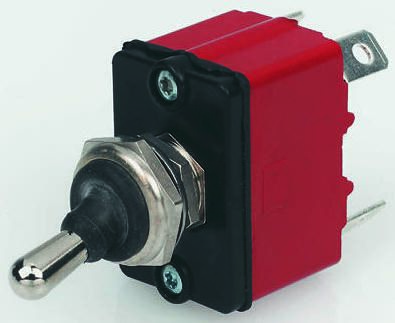

3636NF/2
| Manufacturer | |
| Description | SP Toggle Switch On-On, 12 A @ 28 V dc Toggle Switches TOGGLE SWITCH SPDT ON-OFF-ON SWITCH, SPDT, IP67 SEALED POWER TOGGLE SWITCH Apem SP 切换开关 , 开 - 开, 12 A@ 28 V 直流 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Toggle Switches | Factory Pack Quantity | 25 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85365007 | ||
Electrical
| Voltage - Core | :250V | Voltage Rating | 250 V |
| Switch Function | ON - ON | Contact Resistance | 10mΩ |
| Voltage - Breakdown | :2500V | Current Rating (Max) | 12 A |
| Current - Max/Contact | :12A | Insulation Resistance | :1000Mohm |
| Switch Function/Rating | On-On | Contact Rating (Current) | 12 A @ 28 V dc |
| Contact Rating @ Voltage | :6A | Connector - Voltage Input | :Solder |
| Voltage - Supply (Vcc/Vdd) | :28V | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |
Mechanical
| Depth | :23mm | Width | :21.5mm |
| Height | :35mm | Length | :35mm |
| Weight | 0.04284 | Tab Width | :0.8mm |
| Thread Size | :12 x 0.75 | Contact Form | SPDT |
| Actuator Type | Paddle | Mounting Type | Panel Mount |
| Terminal Type | Solder, Tab | Thread Length | :10.5mm |
| Contact Finish | Silver | Mounting Style | Panel |
| Actuator Length | 17.5mm | Panel Thickness | :5mm |
| Contact Material | Silver | Actuator Material | Brass |
| Termination Style | Quick Connect Terminal | Actuator Style/Size | :Bat |
| Number of Positions | :1000 | Bushing, Grommet Type | M12 |
| Switch Actuation Level | :Bat | Contact Layout, Typical | SP |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Series | :3600NF | ||
Environmental
| Seal Rating | Sealed | NEMA Frame Size | :IP67 |
| Operating Temperature | +85°C | ||
