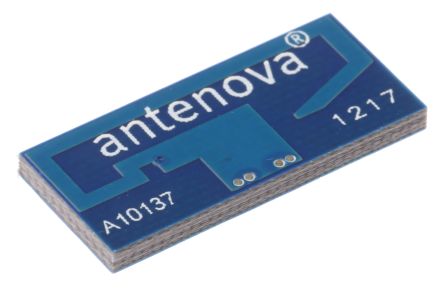

A10137
| Manufacturer | |
| Description | Antenna GPS -2.2dB/-1.6dB Gain 1575MHz SMD T/R ANTENNA GPS 1575MHZ SMD Antenova GPS Antenna A10137 SMA Antennas Cyaneus SMD GPS Co-planar 1575.42MHz Antenova 内置 GPS 天线 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 627-1015-1 | Product Category | Antennas |
| Standard Package | Tape & Reel | Factory Pack Quantity | 1000 |
| Standard Package Name | SMD | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Gain | -4.4dBi | VSWR | 1.4 |
| Frequency | 1.575GHz (1.525Mhz ~ 1.625Mhz) | Impedance | 50 Ohm |
| Antenna Type | Chip | Frequency - Max | 1575 MHz |
Mechanical
| Width | 9 mm | Height | 1.6 mm |
| Length | 20.1 mm | Packaging | Tape and Reel |
| Lead Style | No Lead | Termination | Surface Mount |
| Height (Max) | 0.06" (1.6mm) | Mounting Type | Surface Mount |
| Connector Type | SMA | Mounting Style | SMD/SMT |
| Length - Overall | 20.1 | Package Quantity | SMD |
| Size / Dimension | 20.1 mm L x 9 mm W x 1.6 mm H | Termination Style | SMD/SMT |
| Shell Size - Insert | 1.5 | ||
Product Info
| Type | GPS | Technology | Internal GPS SMD Chip Antenna |
| Number of Bands | 1 | Other Specifications | 内部 |
Environmental
| Operating Temperature | 85 | Luminous Flux @ Current/Temperature | -2.2|-1.6 dB |
