REF192GSZ
| Manufacturer | |
| Description | V-Ref Precision 2.5V 30mA 8-Pin SOIC N Tube IC VREF SERIES PREC 2.5V 8-SOIC REF192GSZ, Voltage Reference 2.49 to 2.51V, 2mV 30mA 18V Max. 8-Pin SOIC Voltage References 2.5V Prec Micropwr LDO Low VRef MICROPOWER, VOLT REF, 2.5V, SOIC Voltage reference source; 2.5V; SO8 Voltage reference 2.5 V SO-8, REF192GSZ, Analog Devices Analog Devices Fixed 2.5V 电压参考, ±0.08 %精确度, 30mA, 18 V输入, 8针 SOIC封装 |
| Category |
Business
| Standard Package | Rail / Tube | Factory Pack Quantity | 98 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Rad Hardened | No | ||
Electrical
| Tolerance | ±10mV | Voltage - Max | :1.2mV |
| Reference Type | Precision | Voltage Rating | 2.5 V |
| Line Regulation | 8 ppm/V | Load Regulation | 15 ppm/mA |
| Current - Output | 30 mA | Voltage - Supply | :0.08% |
| Voltage Reference | :2.5V | Number of Channels | 1 |
| Voltage - Input (Min) | 2.5V | Voltage - Output (Max) | 2.51 V |
| Current - Quiescent (Iq) | 15µA | Current - Output / Channel | 30 mA |
| Accuracy - Highest (Lowest) | 2 mV | Voltage - Output (Min/Fixed) | 2.49 V |
| Common Mode Transient Immunity (Min) | Extended Industrial | Voltage - Continuous Operating (Max) (MCOV) | :15V |
Mechanical
| Width | 4mm | Height | 1.5mm |
| Length | 5mm | Weight | 0.00007 |
| Packaging | Tube | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Number of Pins | :8 |
| Package / Case | 8SOIC N | Package Cooled | SOIC N |
| Material Finish | :MSL 1 - Unlimited | Package Quantity | SOIC N |
| Size / Dimension | 5 x 4 x 1.5mm | Number of Positions | 8 |
| Supplier Device Package | 8-SOIC N | ||
Product Info
| Spg | 98 | Type | voltage reference source |
| Series | REF192 | Topology | Series |
| Base Unit | :192 | Diode Type | :Voltage Reference |
| Programmable | Precision | Number of Units | 1 |
| Utilized IC / Part | :REF192GSZ | ||
Environmental
| Operating Temperature | -40 to 85 °C | Temperature Coefficient | 25 ppm/°C |
| Temperature Coefficient (Typ) | 25 PPM/C | Operating Temperature - Junction | :85°C |
Documents & Media
Similar Parts
120-5
Wakefield
Chemicals SILICON GREASE 5oz. SILICON GREASE 5 OZ TUBE Thrml Mgmt Access Thermal Grease Opaque White 56°C/W 0.735W/m.K 5X10e14Ohm.cm Tube HEAT SINK, COMPOUND, 0.14KG, TUBE ThermalGrease;Tube5oz.;White;SiliconeOilBased;120Series 120 Series 5 oz Tube Silicone Oil Based Thermal Joint Compound

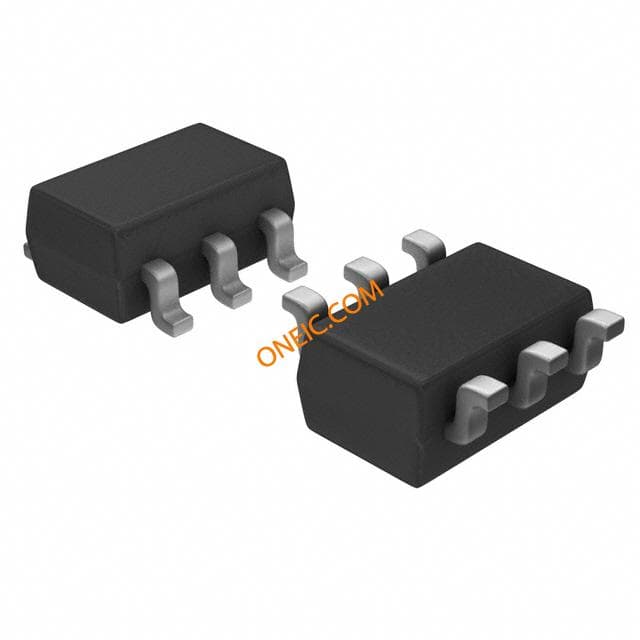

ADR3425ARJZ-R7
