ADXL335BCPZ
| Manufacturer | |
| Description | Accelerometer Triple ±3g 2.5V/3.3V 270mV/g to 330mV/g 16-Pin LFCSP EP IC ACCELEROMETER 3AX 3G 16LFCSP ADXL335BCPZ, Accelerometer 3-Axis, 1600 (xy), 550 (z)kHz 1.8 to 3.6V, 16-Pin LFCSP EP Accelerometers Small 3-Axis +/-3 g Low Power Accelerometer Triple �3g 2.5V/3.3V 270mV/g to 330mV/g 16-Pin LFCSP EP IC, ACCELEROMETER, 3 AXIS, 3G, 16LFCSP Acceleration sensor LFCSPLQ-16, ADXL335BCPZ, Analog Devices , 3轴 加速表, 1600 (xy)，550 (z) kHz, 1.8 → 3.6 V, 16针 LFCSP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Trays | Factory Pack Quantity | 490 |
| Standard Package Name | LFCSP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Rad Hardened | No | ||
Electrical
| Noise | 150 (xy), 300 (z)mg/Hz rms | Output | :Analogue |
| Output Type | Analog | Sensitivity | 270 to 330 mV/g |
| Sensor Type | :LFCSP | Sensing Angle | Triple |
| Voltage Rating | 1.8 V | Current - Output | 350 uA |
| Voltage - Supply | 1.8 to 3.6 V | Voltage - Supply (Min) | 3.6 V |
Mechanical
| Axis | Triple | Depth | 4 mm |
| Width | 4mm | Height | 1.43mm |
| Length | 4mm | Weight | 0.001 |
| Bandwidth | 1.6kHz - XY, 550Hz - Z | Packaging | Tray |
| Lead Style | No Lead | Acceleration | ±3 g |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :16 | Package / Case | 16LFCSP EP |
| Package Cooled | LFCSP EP | Material Finish | :MSL 3 - 168 hours |
| Length - Overall | 4 mm | Package Quantity | LFCSP EP |
| Size / Dimension | 4 x 4 x 1.43mm | Number of Positions | 16 |
| Shell Size - Insert | 1.43 | Supplier Device Package | 16-LFCSP-LQ (4x4) |
Product Info
| Series | ADXL335 | Number of Axes | 3 |
| Measurement Type | :X, Y, Z | Printed Circuit Board | 16 |
Environmental
| Acceleration Range | ±3.6g | Operating Temperature | -40 to 85 °C |
| Operating Temperature - Junction | 85C | ||
Documents & Media
Similar Parts

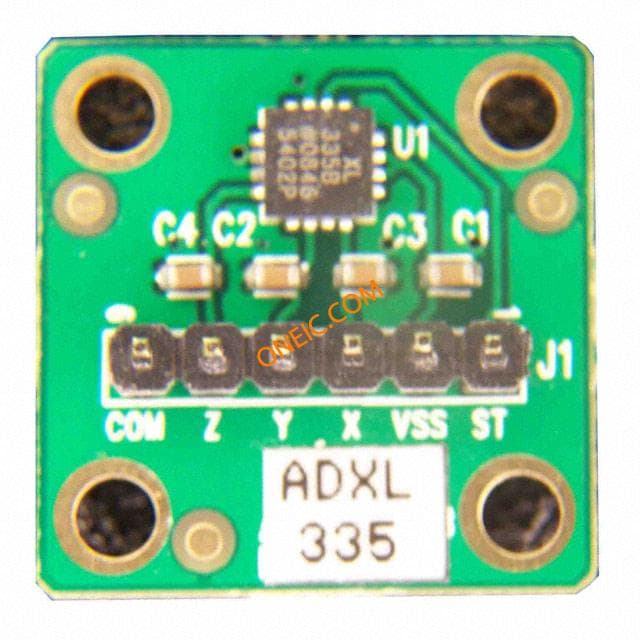

EVAL-ADXL335Z
