ADUM5402CRWZ
| Manufacturer | |
| Description | Digital Isolator 16-Pin SOIC W Digital Isolator 4-CH 25Mbps 16-Pin SOIC W Tube IC DGTL ISO 4CH LOGIC 16SOIC Digital Isolator 4-channel SOIC16 Isolator Interface IC Quad-CH w/ Intg DC/DC Converter ISOLATOR, 4CH, DCDC, CONV, 16SOIC Analog Devices 4通道 数字隔离器, 2500 V隔离电压, 16针 SOIC Digital Isolators Quad-CH w/ Intg DC/DC Converter |
| Category |
Business
| Standard Package | Rail / Tube | Factory Pack Quantity | 47 |
| Standard Package Name | SOIC W | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Rad Hardened | No | ESD Protection | No |
| Approval Agency Marking | CSA/DIN/EN/UL/VDE | ||
Electrical
| Data Rate | 25Mbps | Output Type | Logic, Regulated Voltage |
| Power - Rated | 500 mW | Data Rate (Max) | 25Mbps |
| Rise Time (Typ) | 2.5ns | Current - Output | :9mA |
| Number of Inputs | 2 | Voltage - Supply | 3.3V, 5V |
| Propagation Delay | 45ns | Number of Channels | 4 |
| Voltage - Isolation | 2500Vrms | Voltage - Supply (Min) | 5.5 |
| Power Dissipation (Max) | 500 | Propagation Delay (Max) | 45 |
| Delay Time - Propagation | 60 ns | Current - Input Bias (Max) | 20 μA |
| Max Propagation Delay @ V, Max CL | 2.5(Typ) | Voltage - Forward (Vf) (Max) @ If | 5V |
| Propagation Delay tpLH / tpHL (Max) | 60 | Common Mode Transient Immunity (Min) | 25 |
| Voltage - Continuous Operating (Max) (MCOV) | 560Vp | ||
Mechanical
| Depth | 2.35mm | Width | 7.6mm |
| Length | 10.5mm | Weight | 0.0193 |
| Bandwidth | 40 | Packaging | Tube |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 16 |
| Package / Case | 16SOIC W | Package Cooled | SOIC W |
| Material Finish | :MSL 3 - 168 hours | Length - Overall | 10.5(Max) |
| Package Quantity | SOIC W | Number of Positions | 16 |
| Shell Size - Insert | 2.35(Max) | Supplier Device Package | 16-SOIC W |
| Pulse Width Distortion (Max) | 6 | ||
Product Info
| Series | ADUM5402 | Printed Circuit Board | 16 |
| Inputs - Side 1/Side 2 | 2/2 | ||
Environmental
| Operating Temperature | -40 to 105 °C | Operating Temperature - Junction | 105C |
Documents & Media
Similar Parts
EVAL-CN0188-SDPZ
analog devices
EVAL-CN0188-SDPZ Development Kit For Wall Power Supply For Evaluation Board BOARD EVAL CN0188 Power Management IC Development Tools CftL CN0188 Eval BRD AD7171, CURRENT MONITOR, EVAL BOARD
EVAL-CN0218-SDPZ
analog devices

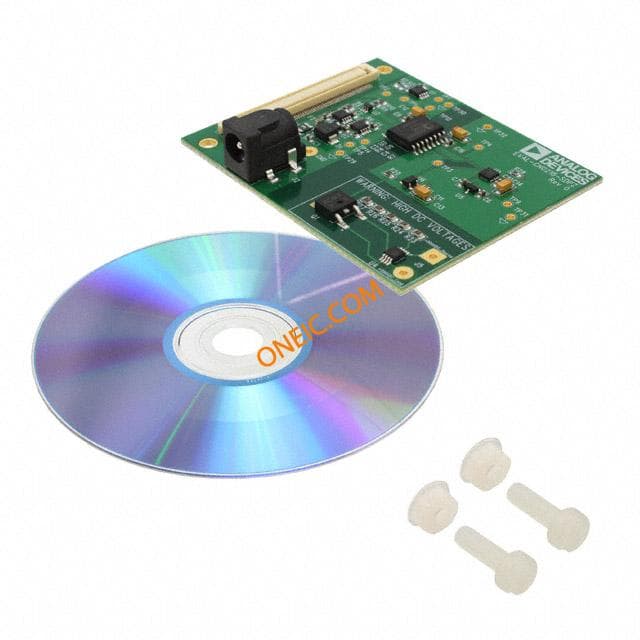

Evaluation Board For Precision Instrumentation Amplifier With Signal Processing Amplifiers BOARD CFTL AD8212 Power Management IC Development Tools CftL CN0218 Eval BRD AD8212, CURRENT MONITOR, EVAL BOARD Analog Devices CN0218 评估测试板
EVAL-ADUMQSEBZ
analog devices

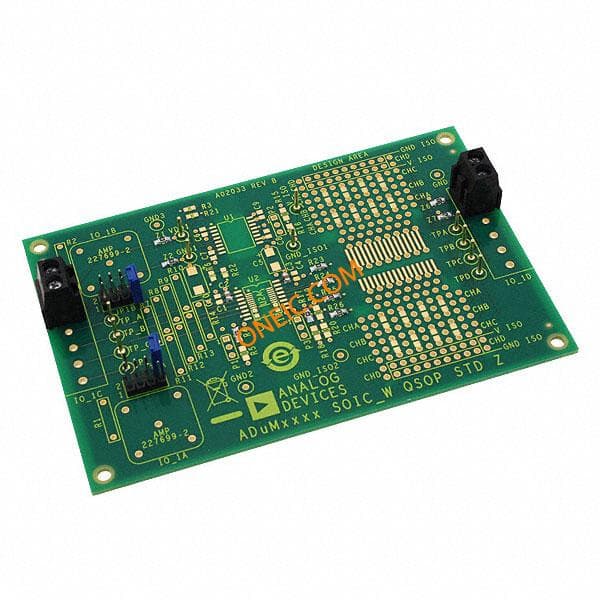

Evaluation Board Evaluating 16-Lead SOIC And 16-Lead QSOP Digital Isolators EVAL BOARD FOR ICOUPLER SMD Evaluation Board for iCoupler SOIC/ QSOP Interface Development Tools EVAL-ADUMQS ICOUPLER, ISOLATOR, EVALUATION BOARD Analog Devices iCoupler 数字隔离器接口 评估测试板
