ADUM1100ARZ
| Manufacturer | |
| Description | Digital Isolators 8-Pin SOIC N Digital Isolator CMOS 1-CH 25Mbps 8-Pin SOIC N IC DGTL ISO 1CH LOGIC 8SOIC ADuM1100A 25Mbps bus isolator Isolator Interface IC Digital SGL CH HIGH SPEED DIGITAL ISOLATOR, SMD Inductor: digital isolator; SMD; Channels:1 Interface Isolator SOIC-8, ADUM1100ARZ, Analog Devices Analog Devices 数字隔离器, 2500 V隔离电压, 8针 SOIC Digital Isolators Digital SGL CH |
| Category |
Business
| Standard Package | Rail / Tube | Factory Pack Quantity | 98 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | :ADUM1100 | Rad Hardened | No |
| ESD Protection | No | Approval Agency Marking | CSA/UL/VDE |
Electrical
| Core Type | digital isolator | Data Rate | 25Mbps |
| Output Type | CMOS | Data Rate (Max) | 25Mbps |
| Rise Time (Typ) | 3ns | Current - Output | 0.8 mA |
| Number of Inputs | 1 | Voltage - Supply | 3 V ~ 5.5 V |
| Propagation Delay | 10.5ns | Number of Channels | 1 |
| Voltage - Isolation | 2500Vrms | Voltage - Supply (Min) | 5.5 |
| Power Dissipation (Max) | 240 mW | Propagation Delay (Max) | 15 |
| Current - Quiescent (Iq) | 0.8 | Delay Time - Propagation | 18 ns |
| Current - Input Bias (Max) | 10 μA | Max Propagation Delay @ V, Max CL | 3(Typ) |
| Voltage - Forward (Vf) (Max) @ If | 5V | Propagation Delay tpLH / tpHL (Max) | 28 |
| Common Mode Transient Immunity (Min) | 25 | Voltage - Continuous Operating (Max) (MCOV) | 560Vp |
Mechanical
| Depth | 1.5mm | Width | 4mm |
| Length | 5mm | Weight | 0.000175 |
| Bandwidth | 40 | Packaging | Tube |
| Lead Style | Gull-wing | Termination | :SMD |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | 8 | Package / Case | 8SOIC N |
| Package Cooled | SOIC N | Material Finish | :MSL 1 - Unlimited |
| Package Quantity | SOIC N | Number of Positions | 8 |
| Supplier Device Package | 8-SOIC N | Pulse Width Distortion (Max) | 3 |
Product Info
| Spg | 300 | Series | ADUM1100 |
| DELETED | Compliant | Base Unit | :1100 |
| Number of Units | 1 | Inputs - Side 1/Side 2 | 1/0 |
Environmental
| Operating Temperature | -40 to 105 °C | Operating Temperature - Junction | 105C |
Documents & Media
Similar Parts

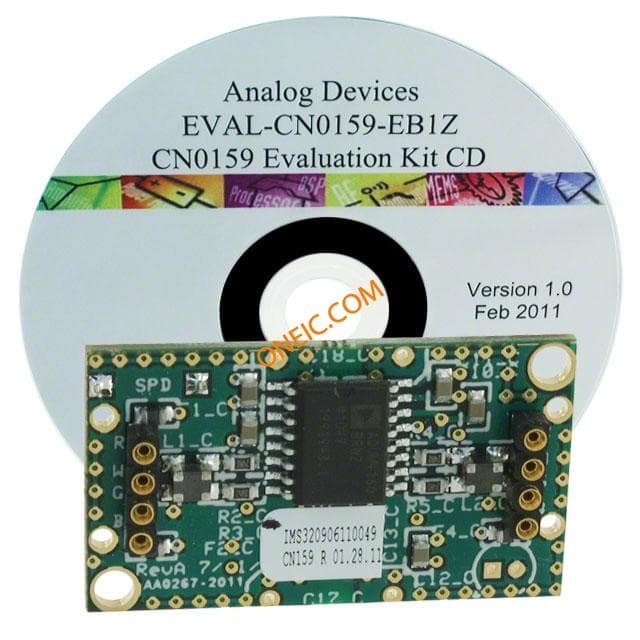

EVAL-CN0159-EB1Z
