ADUC845BSZ62-3
| Manufacturer | |
| Description | MCU 8-bit ADuC8xx 8052 CISC 62KB Flash 3.3V/5V 52-Pin MQFP IC MCU 8BIT 62KB FLASH 52MQFP ADUC845BSZ62-3, 8 bit Microcontroller 8052 12.58MHz 4, 62kb Flash, 2304B RAM, I2C SPI 52-Pin MQFP 8-bit Microcontrollers - MCU Microcnvtr w/ Built In 24B ADC & 12B DAC IC, SM MCU 12MIPS 8052, ADC+DAC |
| Category |
Business
| Other Names | ADUC845BSZ623 | Standard Package | Trays |
| Factory Pack Quantity | 96 | Standard Package Name | QFP |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85411000 |
| Approval Agency | No | ||
Electrical
| Speed | 12.85 MHz | Timer | 3 x 16 bit |
| RAM Size | 2.25 KB | Core Size | 8-Bit |
| Core Type | 8052 | Interface | I2C/SPI/UART |
| Clock Rate | 12 MHz | Resolution | 16bit |
| EEPROM Size | 4K x 8 | Memory Size | 2304 B |
| Memory Type | :Flash | Number of I/O | 24 |
| Number of Bits | 24/24 | Voltage Rating | 2.7 → 5.25 V |
| Watchdog Timer | 1 | Clock Frequency | :12.58MHz |
| Data Converters | A/D 10x24b; D/A 1x12b, 2x16b | FPGA Core Cells | :12 |
| Frequency - Max | 12.58MHz | Number of DAC's | 1 |
| Oscillator Type | Internal | Serial Protocol | 1 |
| Voltage - Supply | 3.3|5 V | Resolution (Bits) | 24bit |
| Serial Interfaces | :UART, SPI, I2C | Number of Channels | 0 |
| Program Memory Size | 62 KB | Program Memory Type | Flash |
| Number of ADCs / DACs | 10/10 | Voltage - Supply (Min) | 3.6|5.25 |
| Frequency (Center/Band) | 16bit | Number of Bits per Element | 12 |
| Voltage - Supply (Vcc/Vdd) | 2.7 V ~ 3.6 V | ||
Mechanical
| Width | 10mm | Height | 2mm |
| Length | 10mm | Weight | 0.35 |
| Packaging | Tray | Lead Style | Gull-wing |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :52 |
| Package / Case | 52MQFP | Package Cooled | MQFP |
| Material Finish | :MSL 3 - 168 hours | Length - Overall | 10 |
| Package Quantity | MQFP | Size / Dimension | 10 x 10 x 2mm |
| Number of Positions | 52 | Shell Size - Insert | 2 |
| Number of Cores/Bus Width | 8 Bit | Pulse Width Distortion (Max) | 6 x 16 bit |
Product Info
| SPI | 1 | USB | 0 |
| Series | ADUC845 | Protocol | 1 |
| Flash Size | :62KB | On-Chip RAM | 2(10-chx24-bit) |
| Peripherals | POR, PSM, PWM, Temp Sensor, WDT | Architecture | CISC |
| Connectivity | I²C, SPI, UART/USART | Core Processor | 8052 |
| Number of Timers | 3 | Controller Series | :(8052) ADUC |
| RF Family/Standard | ADuC8xx | DigiKey Programmable | Yes |
| Printed Circuit Board | 52 | Number of A/D Converters | :2 |
| Number of Inputs and Type | :2 | ||
Environmental
| Operating Temperature | -40 to 125 °C | ||
Documents & Media
Similar Parts
EVAL-ADUC845QSZ
analog devices
Quickstart-Plus Development System For Micro-Converter, Dual 10-Channel 24-Bit ADCs With Embedded 62Kb Flash MCU KIT DEV FOR ADUC845 QUICK START Development Boards & Kits - 8051 EVAL-ADUC845 8052, ADUC845, QUICKSTART, DEV KIT

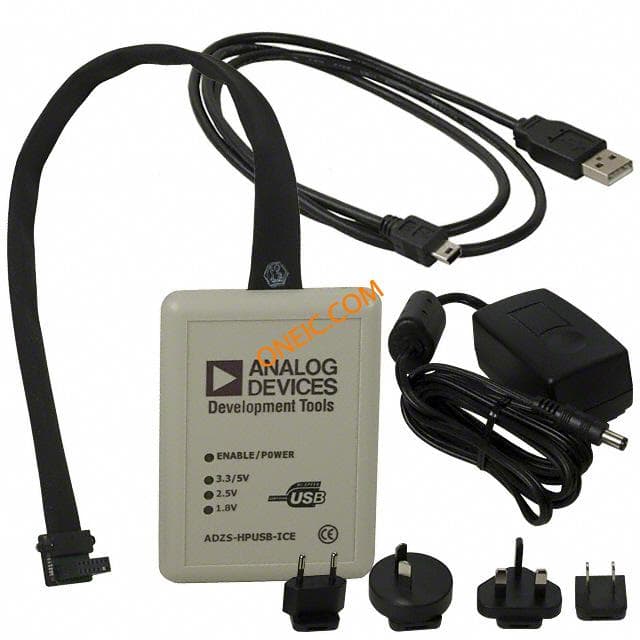

ADZS-HPUSB-ICE
