ADUC7128BCPZ126
| Manufacturer | |
| Description | MCU 16-bit/32-bit ADuC7xxx ARM7TDMI RISC 126KB Flash 3.3V 64-Pin LFCSP EP IC MCU ARM7 126KB FLASH 64LCSP ADUC7128BCPZ126, 16, 32 bit Microcontroller ARM7TDMI 41.78MHz 126kb Flash, 8kb RAM, I2C SPI 64-Pin LFCSP ARM Microcontrollers - MCU Precision 1 MSPS 12-Bit Analog I/O |
| Category |
Business
| Standard Package | Trays | Factory Pack Quantity | 260 |
| Standard Package Name | LFCSP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | No | ||
Electrical
| Speed | 41.78 MHz | Timer | 1 x 16 bit, 1 x 16/48 bit, 3 x 32 bit |
| RAM Size | 8 KB | Core Size | 16/32-Bit |
| Core Type | ARM7TDMI | Interface | I2C/SPI/UART |
| Clock Rate | 40 MHz | Resolution | 16bit |
| Memory Size | 8192 B | Number of I/O | 40 |
| Number of Bits | 12 | Voltage Rating | 3 → 3.6 V |
| Watchdog Timer | 1 | Data Converters | A/D 10x12b; D/A 1x10b |
| Frequency - Max | 41.78MHz | Number of DAC's | 1 |
| Oscillator Type | Internal | Serial Protocol | 2 |
| Voltage - Supply | 3.3 V | Resolution (Bits) | 12bit |
| Number of Channels | 0 | Program Memory Size | 126 KB |
| Program Memory Type | Flash | Number of ADCs / DACs | 14 |
| Voltage - Supply (Min) | 3.6 | Frequency (Center/Band) | 16 bit, 32 bit, 48 bit |
| Power Dissipation (Max) | 135 mW | Number of Counter/Timers | 5 Timer |
| Number of Bits per Element | 12 bit | Voltage - Supply (Vcc/Vdd) | 3 V ~ 3.6 V |
Mechanical
| Width | 9mm | Height | 0.95mm |
| Length | 9mm | Packaging | Tray |
| Lead Style | No Lead | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 64LFCSP EP |
| Package Cooled | LFCSP | Length - Overall | 9 |
| Package Quantity | LFCSP EP | Size / Dimension | 9 x 9 x 0.95mm |
| Number of Positions | 64 | Shell Size - Insert | 0.83 |
| Number of Cores/Bus Width | 16|32 Bit | Pulse Width Distortion (Max) | 6 x 16 bit |
Product Info
| SPI | 1 | USB | 0 |
| Series | ARM7 | Protocol | 2 |
| On-Chip RAM | 14-chx12-bit | Peripherals | PLA, POR, PWM, PSM, Temp Sensor, WDT |
| Architecture | RISC | Connectivity | I²C, SPI, UART/USART |
| Manufacturer | Analog Devices | Core Processor | ARM7® |
| Development Kit | EVAL-ADUC7128QSPZ | Number of Timers | 5 |
| RF Family/Standard | ADuC7xxx | DigiKey Programmable | Yes |
| Printed Circuit Board | 64 | Number of Inputs and Type | 28 I/O |
Environmental
| Operating Temperature | -40 to 125 °C | ||
Documents & Media
Similar Parts
EVAL-ADUC7128QSPZ
analog devices

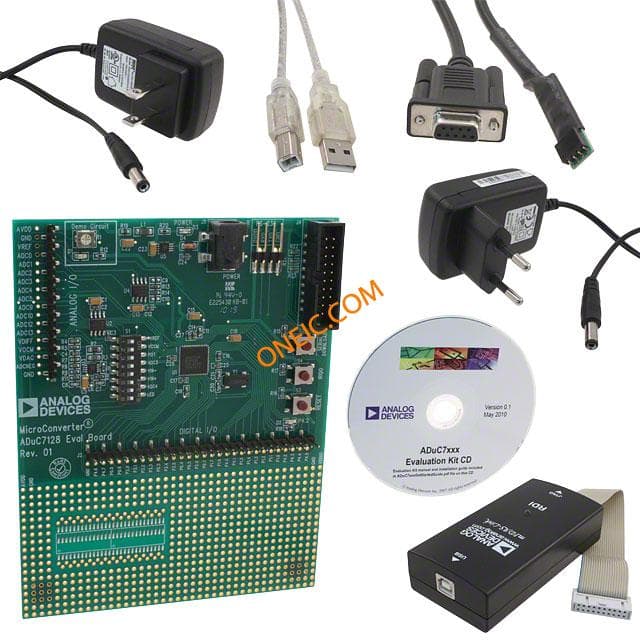

Evaluation Board For Precision Analog Microcontroller ARM7TDMI MCU With 12Bit ADC And DDS DAC KIT DEV FOR ADUC7128 Development Boards & Kits - ARM EVAL-ADUC7128QSPZ
