ADUC7020BCPZ62
| Manufacturer | |
| Description | MCU 16-bit/32-bit ADuC7xxx ARM7TDMI RISC 62KB Flash 3.3V 40-Pin LFCSP EP IC MCU ARM7 62KB FLASH 40LFCSP ADUC7020BCPZ62, 16, 32 bit Microcontroller ARM7TDMI 44MHz 62kb Flash, 8kb RAM, I2C SPI 40-Pin LFCSP VQ ARM Microcontrollers - MCU Precision 1 MSPS 12-Bit Analog I/O IC, MCU 16/32BIT ARM7TDMI CORE, SMD Analog Devices ADuC7 系列 16/32 bit ARM7TDMI MCU, 44MHz, 62 kB ROM 闪存, 8 kB RAM, 40针 LFCSP WQ封装 |
| Category |
Business
| Standard Package | Trays | Factory Pack Quantity | 490 |
| Standard Package Name | LFCSP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
| Part Status | :7020BCPZ62 | Rad Hardened | No |
| Approval Agency | No | ||
Electrical
| Speed | 44 MHz | Timer | 2 x 16 bit, 2 x 32 bit |
| RAM Size | 8 KB | Core Size | 16/32-Bit |
| Core Type | ARM7TDMI | Frequency | 44 MHz |
| Interface | I2C/SPI/UART | Clock Rate | 40 MHz |
| Resolution | 16bit | EEPROM Size | :62KB |
| Memory Size | 8192 B | Memory Type | :Flash |
| Number of I/O | 14 | Number of Bits | 12 |
| Voltage Rating | 2.7 → 3.6 V | Watchdog Timer | 1 |
| Clock Frequency | :44MHz | Data Converters | A/D 5x12b; D/A 4x12b |
| Frequency - Max | 44MHz | Number of DAC's | 4 |
| Oscillator Type | Internal | Serial Protocol | 1 |
| Voltage - Supply | 3.3 V | Resolution (Bits) | 12bit |
| Number of Channels | 0 | Program Memory Size | 62 KB |
| Program Memory Type | Flash | Number of ADCs / DACs | 5 |
| Voltage - Supply (Min) | 2.7 V | Frequency (Center/Band) | 16 bit, 32 bit |
| Power Dissipation (Max) | 120(Typ) mW | Number of Bits per Element | 12 |
| Voltage - Supply (Vcc/Vdd) | 2.7 V ~ 3.6 V | ||
Mechanical
| Width | 6mm | Height | 0.85mm |
| Length | 6mm | Weight | 0.001 |
| Packaging | Tray | Lead Style | No Lead |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :40 |
| Package / Case | 40LFCSP EP | Package Cooled | LFCSP VQ |
| Material Finish | :MSL 3 - 168 hours | Length - Overall | 6 |
| Package Quantity | LFCSP EP | Size / Dimension | 6 x 6 x 0.85mm |
| Number of Positions | 40 | Shell Size - Insert | 0.83 |
| Number of Cores/Bus Width | 16|32 Bit | Pulse Width Distortion (Max) | 6 x 16 bit |
Product Info
| SPI | 1 | USB | 0 |
| Series | ARM7 | Protocol | 1 |
| On-Chip RAM | 5-chx12-bit | Peripherals | PLA, PWM, PSM, Temp Sensor, WDT |
| Architecture | RISC | Connectivity | EBI/EMI, I²C, SPI, UART/USART |
| Programmable | Yes | Core Processor | ARM7® |
| Number of Timers | 4 | Controller Series | :(ARM7) ADUC |
| RF Family/Standard | ADuC7xxx | DigiKey Programmable | Yes |
| Printed Circuit Board | 40 | Microcontroller Features | :ARM7TDMI core, 16-bit/32-bit RISC architecture/JTAG port supports code download and debug |
| Number of A/D Converters | :5 | ||
Environmental
| Operating Temperature | -40 to 125 °C | Operating Temperature - Junction | 125C |
Documents & Media
Similar Parts
ADZS-HPUSB-ICE
analog devices
High Performance USB Based Emulator TOOL EMULATOR USB HP CROSSCORE ADZS-HPUSB-ICE, Development Kit, SHARC, Power Supply, USB Cable, USB-Based Emulator Emulators / Simulators ADZS-HPUSB-ICE USB EMULATOR, JTAG, HI SPD USB 2.0 Analog Devices 开发套件,

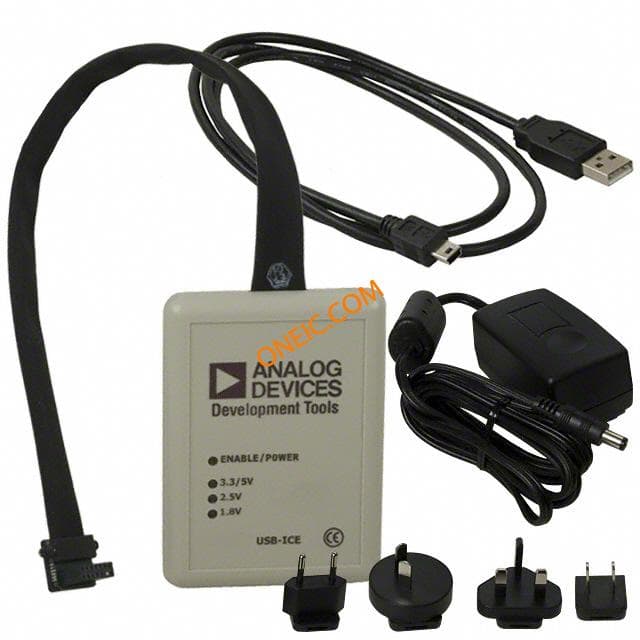

ADZS-USB-ICE
