ADP2105ACPZ-1.8-R7
| Manufacturer | |
| Description | Conv DC-DC Single Step Down 2.7V to 5.5V 16-Pin LFCSP EP T/R IC REG BUCK SYNC 1.8V 1A 16LFCSP Voltage Regulators - Switching Regulators 1 Amp Sync Step-Down Switching Voltage Regulators 1 Amp Sync Step-Down |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | ADP2105ACPZ-1.8-R7-ND | Standard Package | Tape & Reel |
| Factory Pack Quantity | 1500 | Standard Package Name | LFCSP |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| PWM Type | Current Mode | Efficiency | 97 % |
| Output Type | Fixed | Voltage Rating | 1.8 V |
| Line Regulation | 0.33 %/V | Load Regulation | 0.4(Typ) %/A |
| Current - Output | 1 A | Number of Outputs | 1 |
| Regulator Topology | Step Down | Switching Regulator | Yes |
| Frequency - Switching | 1200(Typ) kHz | Synchronous Rectifier | Yes |
| Voltage - Input (Min) | 1.8V | DC Voltage - Input (Min) | 2.7 V |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Width | 4 mm | Height | 0.83 mm |
| Length | 4 mm | Packaging | Tape and Reel |
| Lead Style | No Lead | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 16LFCSP EP |
| Package Cooled | LFCSP EP | Length - Overall | 4 |
| Package Quantity | LFCSP EP | Number of Positions | 16 |
| Shell Size - Insert | 0.83 | Supplier Device Package | 16-LFCSP-VQ (4x4) |
Product Info
| Type | Step Down | Series | ADP2105 |
| Topology | Buck | Manufacturer | Analog Devices |
| Printed Circuit Board | 16 | ||
Environmental
| Operating Temperature | -40 to 125 °C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
ADP2105-1.8-EVALZ
analog devices
Evaluation Board For ADP2105 Step-Down DC-To-DC Converters BOARD EVALUATION ADP2105Z 1.8V Power Management IC Development Tools ADP2105-1.8 Eval Brd 1A STEP-DOWN DC-DC CONVERTERS
$516.1200
Details

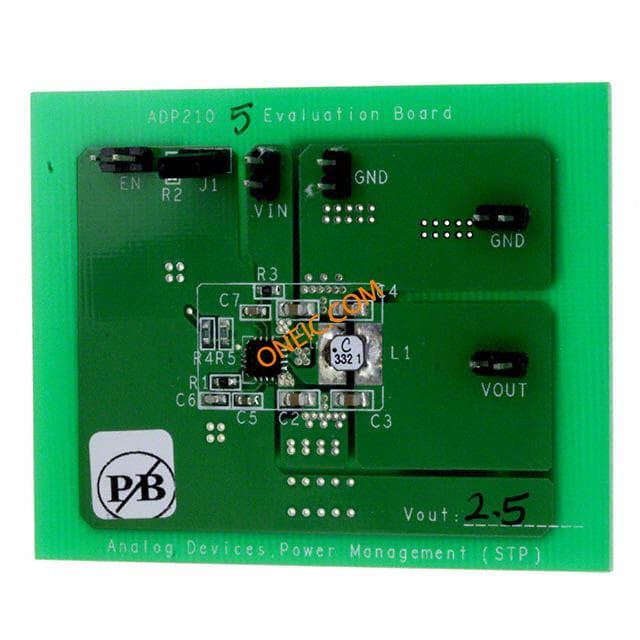

ADP2105-EVALZ
analog devices
Evaluation Board For ADP2105 Step-Down DC-To-DC Converters BOARD EVAL 2.5V ADJ ADP2105 Power Management IC Development Tools ADP2105 Eval Brd 1A STEP-DOWN DC-DC CONVERTERS
$516.1200
Details
