ADP2102YCPZ-1.0-R7
| Manufacturer | |
| Description | Conv DC-DC Single Step Down 2.7V to 5.5V 8-Pin LFCSP EP T/R IC REG BUCK SYNC 1V 0.6A 8LFCSP Voltage Regulators - Switching Regulators 600mA 3MHz Sync Step-Down |
| Category |
Business
| Other Names | ADP2102YCPZ-1.0-R7-ND | Standard Package | Tape & Reel |
| Standard Package Name | LFCSP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| PWM Type | Current Mode | Efficiency | 95 % |
| Output Type | Fixed | Voltage Rating | 1 V |
| Line Regulation | 0.3(Typ) % | Load Regulation | 0.5(Typ) % |
| Current - Output | 0.6 A | Number of Outputs | 1 |
| Switching Regulator | Yes | Frequency - Switching | 3000(Typ) KHz |
| Synchronous Rectifier | Yes | Voltage - Input (Min) | 1V |
| Common Mode Transient Immunity (Min) | Automotive | ||
Mechanical
| Width | 3 mm | Packaging | Tape and Reel |
| Lead Style | No Lead | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 8LFCSP EP |
| Length - Overall | 3 | Package Quantity | LFCSP EP |
| Number of Positions | 8 | Shell Size - Insert | 0.84 |
| Supplier Device Package | 8-LFCSP-VD (3x3) | ||
Product Info
| Type | Step Down | Series | ADP2102 |
| Printed Circuit Board | 8 | ||
Environmental
| Operating Temperature | -40 to 85 °C | ||
Documents & Media
Similar Parts
ADP2102-1.375EVALZ
analog devices
Evaluation Board For Low Duty Cycle, 600 mA, 3 MHz Synchronous Step-Down DC-To-DC Converter BOARD EVAL FOR ADP2102-1.375 Power Management IC Development Tools ADP2102-1.375 Eval EVAL BOARD FIXED OUTPUT 1.375
ADP2102-1.5-EVALZ
analog devices
Evaluation Board For Low Duty Cycle, 600 mA, 3 MHz Synchronous Step-Down DC-To-DC Converter BOARD EVAL FOR ADP2102-1.5 Power Management IC Development Tools ADP2102-1.5 Eval Brd EVAL BOARD FIXED OUTPUT 1.5V
ADP2102-1.875EVALZ
analog devices
Evaluation Board For Low Duty Cycle, 600 mA, 3 MHz Synchronous Step-Down DC-To-DC Converter BOARD EVAL FOR ADP2102-1.875 Power Management IC Development Tools ADP2102-1.875 Eval EVAL BOARD FIXED OUTPUT 1.875V
ADP2102-2-EVALZ
analog devices
Evaluation Board For Low Duty Cycle, 600 mA, 3 MHz Synchronous Step-Down DC-To-DC Converter BOARD EVAL 1.2V-1.5V ADJ OUTPUT Power Management IC Development Tools ADP2102-2 Eval Brd ADJ OUTPUT FROM 1.2V-1.5V
ADP2102-3-EVALZ
analog devices
Evaluation Board For Low Duty Cycle, 600 mA, 3 MHz Synchronous Step-Down DC-To-DC Converter BOARD EVAL 1.5V-1.875V ADJ OUTPT Power Management IC Development Tools ADP2102-3 Eval Brd ADJ OUTPUT FROM 1.5V-1.875V
ADP2102-4-EVALZ
analog devices
Evaluation Board For Low Duty Cycle, 600 mA, 3 MHz Synchronous Step-Down DC-To-DC Converter BOARD EVAL 2.5V-3.3V ADJ OUTPUT Power Management IC Development Tools ADP2102-4 Eval Brd ADJ OUTPUT FROM 2.5V-3.3V
ADP2102-1.8-EVALZ
analog devices
Evaluation Board For Low Duty Cycle, 600 mA, 3 MHz Synchronous Step-Down DC-To-DC Converter BOARD EVAL FOR ADP2102-1.8 Power Management IC Development Tools ADP2102-1.8 Eval Brd EVAL BOARD FIXED OUTPUT 1..8V

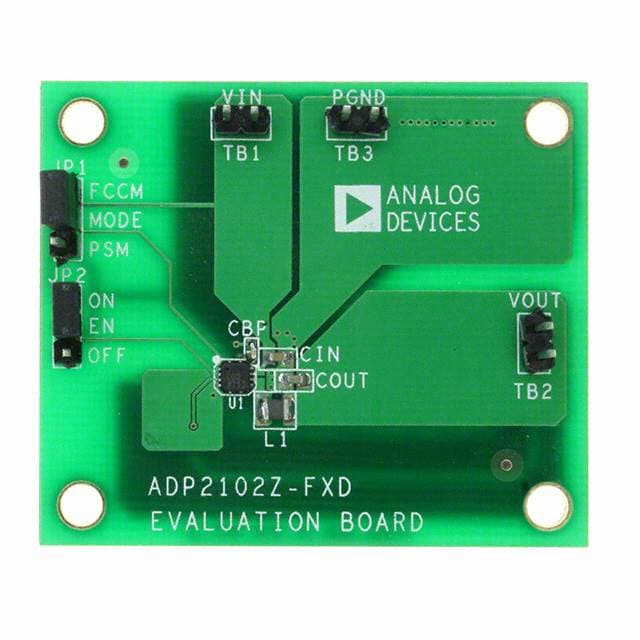

ADP2102-1.2-EVALZ
analog devices
Evaluation Board For StepDown, DC To DC Converter BOARD EVAL FOR 1.2V ADP2102 Power Management IC Development Tools ADP2102-1.2 Eval Brd EVAL BOARD FIXED OUTPUT 1.2
ADP2102-1.25-EVALZ
analog devices
Evaluation Board For Low Duty Cycle, 600 mA, 3 MHz Synchronous Step-Down DC-To-DC Converter BOARD EVAL FOR ADP2102-1.25 Power Management IC Development Tools ADP2102-1.25 EvalBrd EVAL BOARD FIXED OUTPUT 1.25V
ADP2102-1-EVALZ
analog devices
Evaluation Board For Low Duty Cycle, 600 mA, 3 MHz Synchronous Step-Down DC-To-DC Converter BOARD EVAL 0.8V-1.2V ADJ OUTPUT Power Management IC Development Tools ADP2102-1 Eval Brd ADJ OUTPUT FROM 0.8V-1.2V
ADP2102-1.0-EVALZ
analog devices
Evaluation Board For Low Duty Cycle, 600 mA, 3 MHz Synchronous Step-Down DC-To-DC Converter BOARD EVAL FOR ADP2102-1.0 Power Management IC Development Tools ADP2102-1.0 Eval Brd EVAL BOARD FIXED OUTPUT 1.0V
ADP2102-0.8-EVALZ
analog devices
Evaluation Board For Low Duty Cycle, 600 mA, 3 MHz Synchronous Step-Down DC-To-DC Converter BOARD EVAL FOR ADP2102-0.8 Power Management IC Development Tools ADP2102-0.8 Eval Brd EVAL BOARD FIXED OUTPUT 0.8V

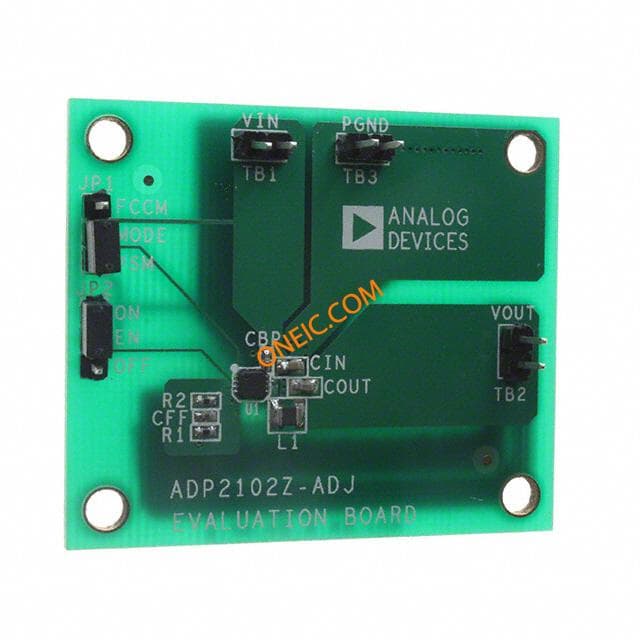

ADP2102-EVALZ
