ADP1829ACPZ-R7
| Manufacturer | |
| Description | DC DC Cntrlr Dual-OUT Step Down 1V to 24V Input 32-Pin LFCSP EP T/R IC REG CTRLR BUCK PWM VM 32LFCSP DC-DC Controller Dual Interleaved LFCSP Switching Controllers Dual Interleaved Step-Down |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | ADP1829ACPZ-R7CT | Standard Package | Tape & Reel |
| Factory Pack Quantity | 1500 | Standard Package Name | LFCSP |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| PWM Type | Voltage Mode | Duty Cycle | 93% |
| Cuk Converter | No | Buck Converter | Yes |
| Isolated Power | No | Voltage Rating | 0.6 to 20.4 V |
| Boost Converter | No | Frequency - Max | 720kHz |
| Current - Output | 20 A | Duty Cycle (Max) | 93 % |
| Voltage - Supply | 3 to 20 V | Doubler Converter | No |
| Flyback Converter | No | Number of Outputs | 2 |
| Divider/Multiplier | No | Regulator Topology | Step Down |
| Inverting Converter | No | Frequency - Switching | 600 kHz |
| Voltage - Output (Max) | 17 V | Voltage - Output (Min/Fixed) | 0.6 V |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Width | 5mm | Height | 0.75mm |
| Length | 5mm | Packaging | Tape and Reel |
| Lead Style | No Lead | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 32LFCSP EP |
| Package Cooled | LFCSP | Package Quantity | LFCSP EP |
| Size / Dimension | 5 x 5 x 0.75mm | Number of Positions | 32 |
Product Info
| Type | Step Down | Series | ADP1829 |
| Shutdown | Yes | Topology | Buck |
| Manufacturer | Analog Devices | Controller Type | Buck Controller |

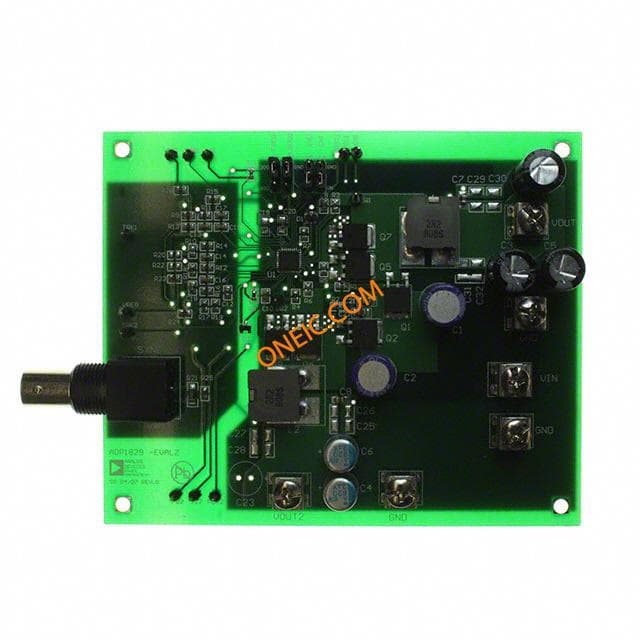

| Development Kit | ADP1829-EVALZ | ||
Environmental
| Operating Temperature | -40 to 85 °C | Operating Temperature - Junction | 85C |
