ADP1621ARMZ-R7
| Manufacturer | |
| Description | DC DC Cntrlr Single-OUT Step Up 2.9V to 5.5V Input 10-Pin MSOP T/R IC REG CTRLR PWM CM 10-MSOP Switching Controllers Constant-Freq Crnt Mode Step-Up Analog Devices 直流-直流控制器, 5.5 V, 升压, 1500 kHz, 10针 MSOP封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | ADP1621ARMZ-R7CT | Standard Package | Tape & Reel |
| Factory Pack Quantity | 1000 | Standard Package Name | MSOP |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| PWM Type | Current Mode | Duty Cycle | 97% |
| Cuk Converter | Yes | Buck Converter | Yes |
| Isolated Power | No | Voltage Rating | 2.9 V to 5.5 V |
| Boost Converter | Yes | Frequency - Max | 1.5MHz |
| Voltage - Supply | 2.9 to 5.5 V | Doubler Converter | Yes |
| Flyback Converter | Yes | Number of Outputs | 1 |
| Divider/Multiplier | Yes | Regulator Topology | Step Up |
| Inverting Converter | Yes | Frequency - Switching | 100 kHz to 1.5 MHz |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Width | 3.1mm | Height | 0.85mm |
| Length | 3.1mm | Packaging | Tape and Reel |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | 10 |
| Package / Case | 10MSOP | Package Cooled | MSOP |
| Package Quantity | MSOP | Size / Dimension | 3.1 x 3.1 x 0.85mm |
| Number of Positions | 10 | ||
Product Info
| Type | Step Up | Series | ADP1621 |
| Function | Y | Shutdown | Yes |
| Topology | Boost | Manufacturer | Analog Devices |

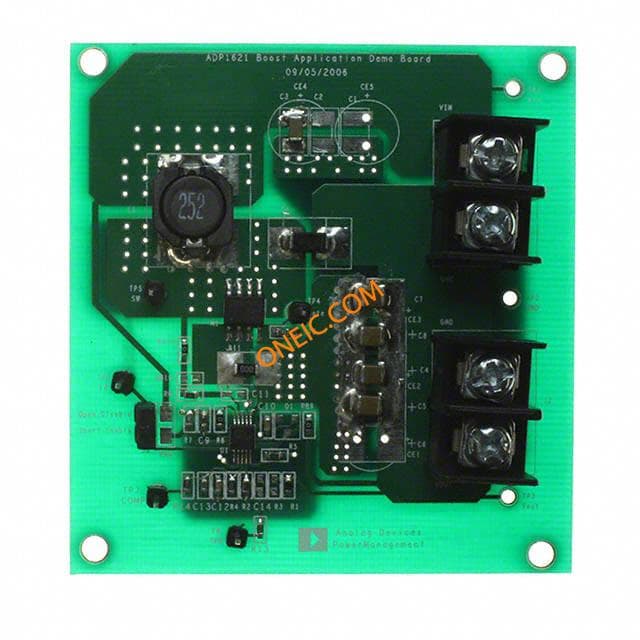

| Controller Type | 升压 | Development Kit | ADP1621-EVALZ |
Environmental
| Operating Temperature | -40 to 125 °C | Operating Temperature - Junction | 125C |
