ADP1612ARMZ-R7
| Manufacturer | |
| Description | Conv DC-DC Single Step Up 1.8V to 5.5V 8-Pin MSOP T/R IC REG BST SEPIC ADJ 1.4A 8MSOP DC-DC Converter 650kHz/1.3MHz 1.4A MSOP8 Voltage Regulators - Switching Regulators 650kHz /1.3MHz Step-Up PWM IC, BOOST, ADJ, 1.4A, 8MSOP Analog Devices 直流-直流转换器, 升压, 1.9A, 1.8 → 5.5 V输入, 5.5 → 20 V输出, 1.4 MHz, 8针 MSOP封装 Switching Voltage Regulators 650kHz /1.3MHz Step-Up PWM |
| Category |
Business
| Other Names | ADP1612ARMZ-R7CT | Standard Package | 1,000 |
| Standard Package Name | MSOP | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423190 |
Electrical
| PWM Type | Current Mode | Efficiency | 94% |
| Output Type | Adjustable | Converter Type | Step Up |
| Voltage Rating | 5.5 V | Line Regulation | 0.07%/V(Typ) |
| Load Regulation | 0.1mV/mA(Typ) | Current - Output | 1.4A |
| Number of Outputs | 1 | Switching Regulator | Yes |
| Frequency - Switching | 650kHz, 1.3MHz | Synchronous Rectifier | No |
| Voltage - Input (Min) | 1.8 V ~ 20 V | Current - Output (Typ) | 0.9A |
| Voltage - Output (Max) | 20 V | Voltage - Output (Min/Fixed) | 5.5 V |
Mechanical
| Width | 3.2mm | Height | 0.95mm |
| Length | 3.2mm | Weight | 0.000175 |
| Packaging | Tape and Reel | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Number of Pins | :8 | Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Package Cooled | MSOP | Material Finish | :MSL 1 - Unlimited |
| Length - Overall | 3 | Package Quantity | MSOP |
| Size / Dimension | 3.2 x 3.2 x 0.95mm | Number of Positions | 8 |
| Shell Size - Insert | 0.85 | Supplier Device Package | 8-MSOP |
Product Info
| Type | Step Up | Series | ADP1612 |
| Base Unit | :1612 | Printed Circuit Board | 8 |
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
Similar Parts
ADP1612-5-EVALZ
analog devices

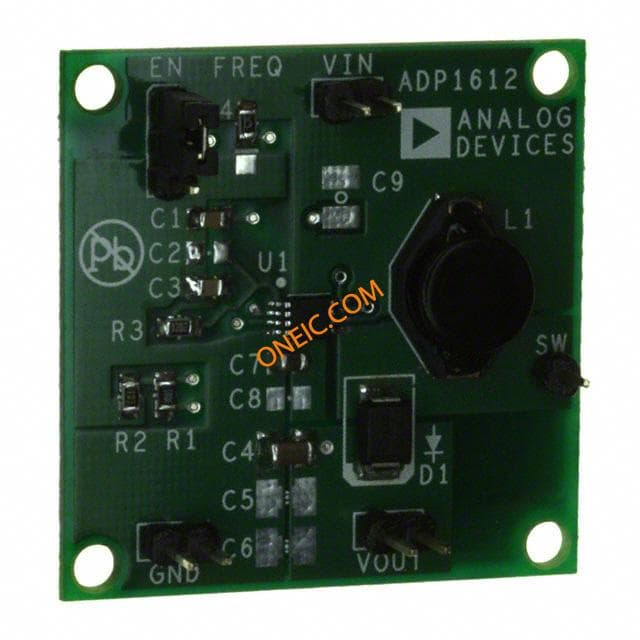

Evaluation Board For Step-Up DC-DC Converter BOARD EVAL ADP1612 5V VOUT Power Management IC Development Tools ADP1612-5 Eval Brd ADP1612, DC TO DC CONV, EVAL BOARD Analog Devices ADP1612 直流-直流转换器 评估测试板
74456047
Wurth Electronics Inc

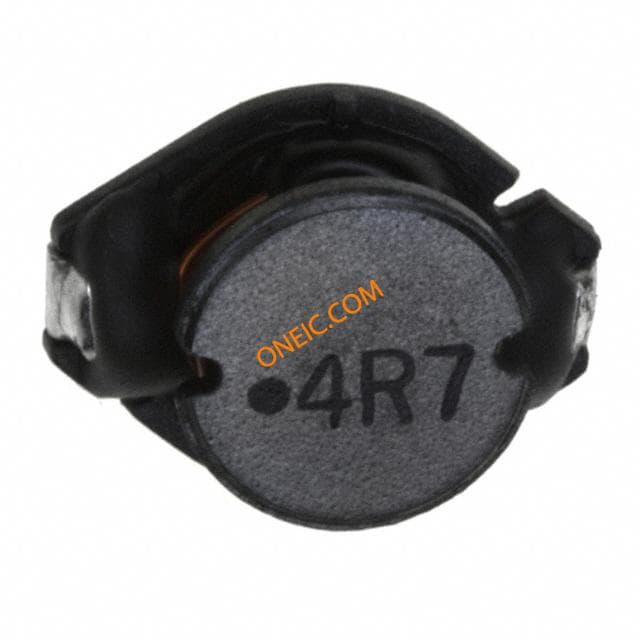

INDUCTOR POWER 4.7UH 5.0A SMD Power Inductor SMD WE-PD4 L 4.7uH 5.00A CHOKE, SMD, 4.7UH Wurth WE-PD4 系列 铁氧体芯材 绕线贴片电感器, 4.7 μH ±20%, 5A Idc
74456122
Wurth Electronics Inc
INDUCTOR POWER 22UH 2.6A SMD Power Inductor SMD WE-PD4 L 22.0uH 2.60A CHOKE, SMD, 22UH Wurth WE-PD4 系列 铁氧体芯材 绕线贴片电感器, 22 μH ±20%, 2.6A Idc
74456115
Wurth Electronics Inc
INDUCTOR POWER 15UH 2.9A SMD Power Inductor SMD WE-PD4 L 15.0uH 2.90A CHOKE, SMD, 15UH Wurth WE-PD4 系列 铁氧体芯材 绕线贴片电感器, 15 μH ±20%, 2.9A Idc
7445610
Wurth Electronics Inc
INDUCTOR POWER 10UH 3.3A SMD Power Inductor SMD WE-PD4 L 10.0uH 3.30A CHOKE, SMD, 10UH Wurth WE-PD4 系列 铁氧体芯材 绕线贴片电感器, 10 μH ±20%, 3.3A Idc
74456068
Wurth Electronics Inc

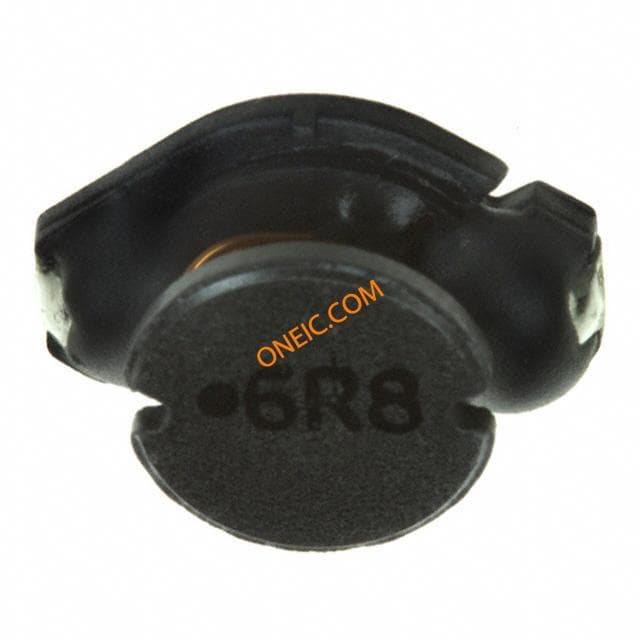

INDUCTOR POWER 6.8UH 3.8A SMD CHOKE, SMD, 6.8UH
EVAL-CN0190-EB1Z
Analog Devices Inc

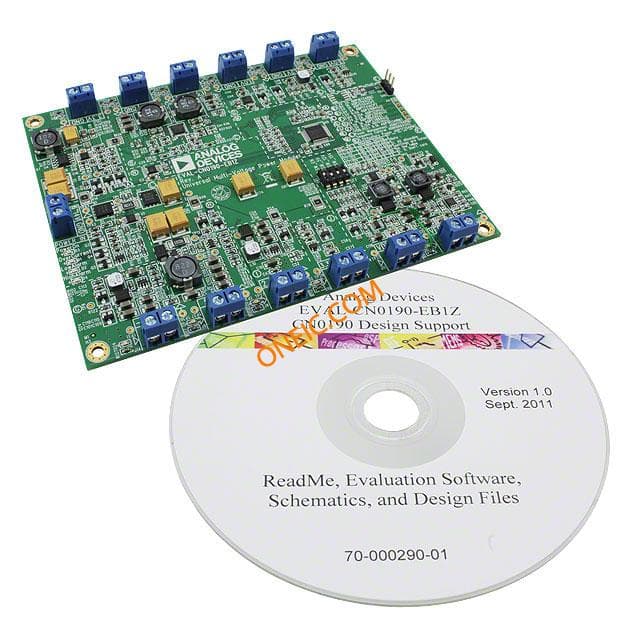

EVAL BOARD FOR CN0190 Power Management IC Development Tools CftL CN0190 EVAL BRD Evaluation Board For Robust,Multivoltage,High Efficiency,25 W Universal Power Supply Module ADP1872, PWR SUPPLY, EVAL BOARD Analog Devices 电源 参考设计
