ADN4692EBRZ
| Manufacturer | |
| Description | LVDS Transceiver 0.65V 14-Pin SOIC N Tube IC TXRX MLVDS 100MBPS 14SOIC LVDS Interface IC 100Mbps Full-Duplex 3.3V Hi Spd IC, TRANSCEIVER, F-DUPLEX, 8NSOIC , 100MBps LVDS 收发器, LVTTL/ MLVDS输入, 3 → 3.6 V, 14针 SOIC封装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 56 | Factory Pack Quantity | 56 |
| Standard Package Name | SOIC | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
Electrical
| Data Rate | 100Mbps | Input Signal | LVTTL|MLVDS |
| Voltage Rating | 3.3 | Data Rate (Max) | 100 |
| Current - Output | 16 mA | Voltage - Supply | 3.3V |
| Number of Elements | 1 | Voltage - I/O High | 0.05 |
| Receiver Hysteresis | 25mV | Voltage - Output (Max) | 0.65 |
| Power Dissipation (Max) | 94 mW | Delay Time - Propagation | 6 ns |
| Propagation Delay tpLH / tpHL (Max) | 6 | ||
Mechanical
| Width | 4(Max) | Weight | 0.5 |
| Packaging | Tube | Lead Style | Gull-wing |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) | Length - Overall | 8.75(Max) |
| Package Quantity | SOIC N | Number of Positions | 14 |
| Shell Size - Insert | 1.5(Max) | Supplier Device Package | 14-SOICN |
Product Info
| Type | Transceiver | Duplex | Full |
| Series | ADN4692E | Features | :Multipoint, Low Voltage Differential Signalling Transceivers, ESD Protection |
| Function | Transceiver | Kit Type | :Interface |
| Protocol | LVDS, Multipoint | Kit Contents | :- |
| Number of Drivers | 1 | Number of Receivers | 1 |
| Chipset Manufacturer | :Analog Devices | Application Specifics | :Transceiver |
| Printed Circuit Board | 14 | Number of Drivers/Receivers | 1/1 |
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
EVAL-ADN469XEFDEBZ
Analog Devices

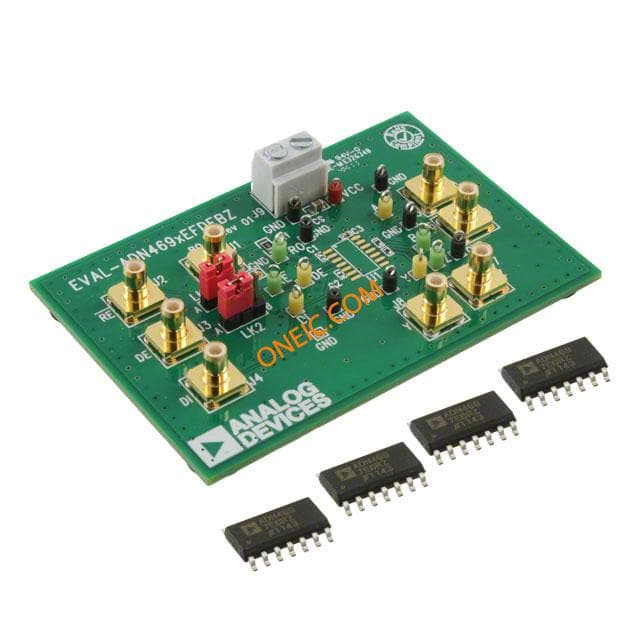

High Speed Evaluation Board For Full Duplex M-LVDS Transceivers ADN4692E,ADN4693E, ADN4695E, And ADN4697E EVAL BOARD FOR ADN469XEFD Other Development Tools ADN469XE EVAL BRD ADN469X, M-LVDS TXRX, EVAL BOARD Analog Devices Multipoint LVDS ADN469xE 收发器接口 评估测试板
