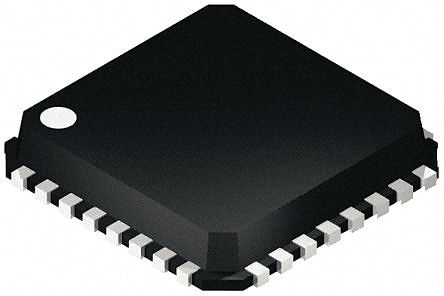

ADN2848ACPZ-32
| Manufacturer | |
| Description | Laser Driver DFB 1.25Gbps 1-CH 32-Pin LFCSP EP Laser Driver DFB 1.25Gbps 1-CH 32-Pin LFCSP EP Tray IC LASER DRIVER 1.25GBPS 32LFCSP Laser Drivers 3.3V Dual-Loop 50Mbps-1.25Gbps Analog Devices N型二极管 激光二极管驱动器, 100mA |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | ADN2848ACPZ32 | Standard Package | Trays |
| Factory Pack Quantity | 490 | Standard Package Name | LFCSP |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Data Rate | 1.25 Gbps | Current - Bias | 100mA |
| Voltage Rating | 3 | Data Rate (Max) | 1.25Gbps |
| Current - Output | 50mA | Current - Supply | 56 mA |
| Voltage - Supply | 3 to 3.6 V | Number of Channels | 1 |
| Current - Modulation | 80mA | Current Rating (Max) | 50mA |
| Voltage - Supply (Min) | 3.6 | Current Rating - Filter | 100mA |
| Common Mode Transient Immunity (Min) | Industrial | ||
Mechanical
| Width | 5.1mm | Height | 0.83 mm |
| Length | 5.1mm | Packaging | Tray |
| Lead Style | No Lead | Contact Type | N型 |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Package / Case | 32LFCSP EP | Length - Overall | 5 |
| Package Quantity | LFCSP EP | Size / Dimension | 5.1 x 5.1 x 0.75mm |
| Number of Positions | 32 | Shell Size - Insert | 0.83 |
| Supplier Device Package | 32-LFCSP-VQ (5x5) | ||
Product Info
| Type | DFB | Series | ADN2848 |
| Manufacturer | Analog Devices | Other Specifications | 闭合回路 |
| Printed Circuit Board | 32 | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
