ADM2482EBRWZ
| Manufacturer | |
| Description | Single Transmitter/Receiver RS-422/RS-485 16-Pin SOIC W IC TXRX RS485 ISO W/ESD 16SOIC ADM2482EBRWZ, Line Transceiver 16Mbit/s Differential, 16-Pin SOIC W Isolator Interface IC 2.5kV Signal Iso Full/Half Duplex TXRX, RS485, ISO, W/ESD, 16SOIC Integrated circuit: transceiver; RS422 / RS485; SO16; 3.3÷5VDC Analog Devices 16MBps 线路收发器, 差分接收器信号, 16针 SOIC W封装 Digital Isolators 2.5kV Signal Iso Full/Half Duplex |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Rail / Tube | Factory Pack Quantity | 47 |
| Standard Package Name | SOIC W | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85423990 |
| Rad Hardened | No | ||
Electrical
| Data Rate | 16 Mbps | Interface | EIA/TIA-485-A|ISO-8482-E|RS-422|RS-485 |
| Drive Type | 3-State | Input Signal | Differential |
| Signal Types | Differential | Transmission | 1 |
| Power - Input | Dual | Power - Rated | 195 mW |
| Data Rate (Max) | Multidrop|Multipoint | Current - Output | 6 mA |
| Current - Supply | 6|50 | Number of Inputs | 2 |
| Voltage - Supply | 3.3|5 V | Number of Outputs | 1 |
| Power Supply Type | Dual | Receiver Hysteresis | 15mV |
| Delay Time - Propagation | 100 ns | Voltage - Supply Span (Typ) | 3.3/5 V |
| Number of Receivers per Line | 10 (RS422), 32 (RS485) | Common Mode Transient Immunity (Min) | Industrial |
Mechanical
| Width | 7.6mm | Height | 2.35mm |
| Length | 10.5mm | Weight | 0.299 |
| Packaging | Tube | Case Color | :SOIC |
| Lead Style | Gull-wing | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Number of Pins | :16 |
| Package / Case | 16SOIC W | Package Cooled | SOIC W |
| Material Finish | :MSL 1 - Unlimited | Length - Overall | 10.5(Max) |
| Package Quantity | SOIC W | Size / Dimension | 10.5 x 7.6 x 2.35mm |
| Number of Positions | 16 | Shell Size - Insert | 2.35(Max) |
| Supplier Device Package | 16-SOIC W | ||
Product Info
| Spg | 141 | Type | Transceiver, Isolated |
| Duplex | Full | Series | ADM2482E |
| DELETED | Compliant | Function | Line Transceiver |
| Protocol | RS422, RS485 | Communications | RS-422|RS-485 |
| Number of Units | 1 | Number of Drivers | :1 |
| Number of Receivers | 1 | Printed Circuit Board | 16 |
| Number of Transmitters | 1 | Number of Drivers/Receivers | 1/1 |
| Number of Transmitters/Receivers | 1 | ||
Environmental
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
Similar Parts

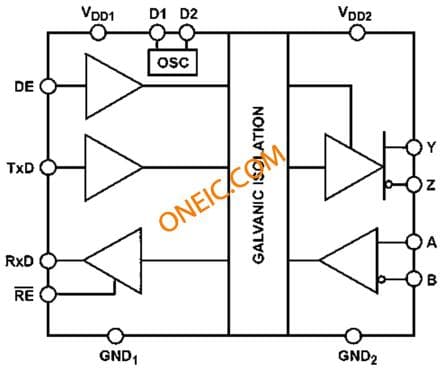

EVAL-ADM2482EEB3Z
